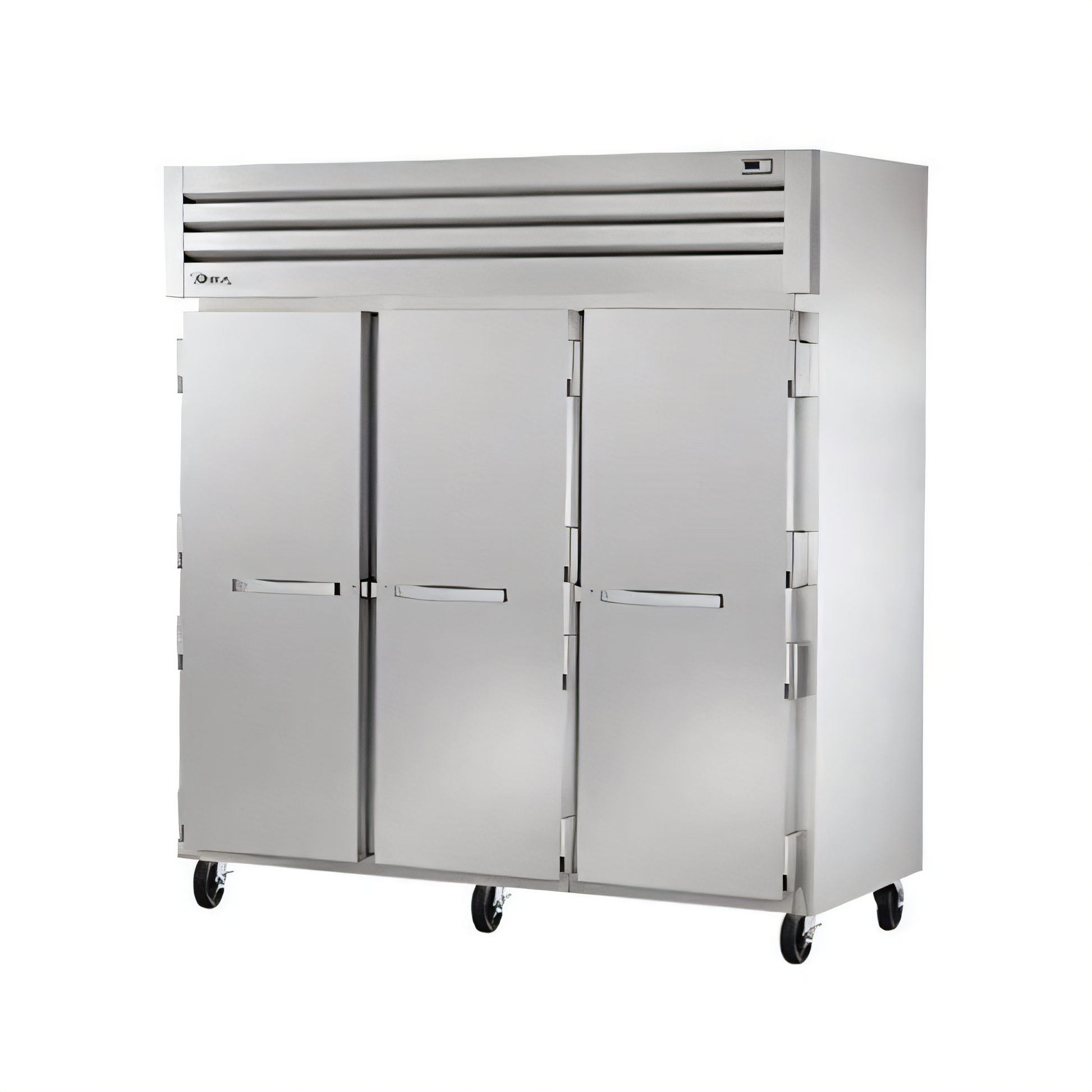

True SPEC SERIES® Reach-In Freezer – Model STR3F-3S-HC
Three-section | -10°F performance | 77 3/4" W × 33 3/4" D × 77 3/4" H
Engineered for demanding commercial kitchens, the STR3F-3S-HC combines rock-solid -10°F holding power with an all-stainless construction and energy-saving hydrocarbon refrigeration.
From ice-cream parlors to institutional foodservice, this heavy-duty freezer keeps product quality high and operating costs low.
Top reasons you’ll love it
- Eco-friendly R290 hydrocarbon system with zero ODP & 3 GWP.
- Dual 3/4 HP compressors and ECM fan motors maintain a steady -10°F (-23.3 °C).
- (3) solid stainless-steel doors with lifetime bolt-style locks, heavy-duty handles and cam-lift hinges.
- Doors self-close under 120° and stay open past 120° for easy loading.
- Complete stainless-steel interior—sides, back, floor, ceiling & door liners—for unmatched durability and sanitation.
- Factory-installed Interior Kit #1 in every section: 9 tray slide sets ready for 18" × 26" sheet pans or two 14" × 18" pans.
- Bright, safety-shielded LED lighting.
- Automatic, time-initiated & temperature-terminated defrost with fan delay to slash energy use.
- 5" locking plate castors for quick cleaning access—curb-mount ready out of the crate.
- Exterior digital control/thermometer toggles °F or °C at a glance.
Built to outperform
- Foamed-in-place, high-density polyurethane insulation (zero ODP/GWP).
- Epoxy-coated evaporator resists corrosion in harsh kitchen environments.
- NSF/ANSI 7 listed for open food storage.
- Proudly Made in the USA and backed by a 7-year parts, labor & compressor warranty.
Technical specifications
| Model |
STR3F-3S-HC |
| Sections / Doors |
3 / 3 solid stainless-steel swing doors |
| Interior kits |
(3) Kit #1 – 9 tray slide sets per section (factory installed) |
| Temperature |
-10°F (-23.3 °C) |
| Exterior dimensions |
77 3/4" W × 33 3/4" D × 77 3/4" H (1975 × 858 × 1975 mm) |
| Refrigeration |
Self-contained, top-mounted; R290 refrigerant |
| Horsepower |
(2) × 3/4 HP dual-compressor system |
| Electrical |
115 V / 60 Hz / 1-ph, 13.8 A, NEMA 5-20P, 9 ft (2.74 m) cord |
| Insulation |
High-density polyurethane, foamed-in-place |
| Castors |
5" diameter, front locking |
| Certifications |
cULus, UL EPH Classified, Natural Refrigerant |
Note: Height does not include 6 1/8" (156 mm) for castors. Depth does not include 1 1/2" (38 mm) for door handles.
7-Year industry-leading warranty
- Parts coverage – 7 years
- Labor coverage – 7 years
- Compressor part coverage – 7 years
Refer to the full warranty statement for complete terms and exclusions.
