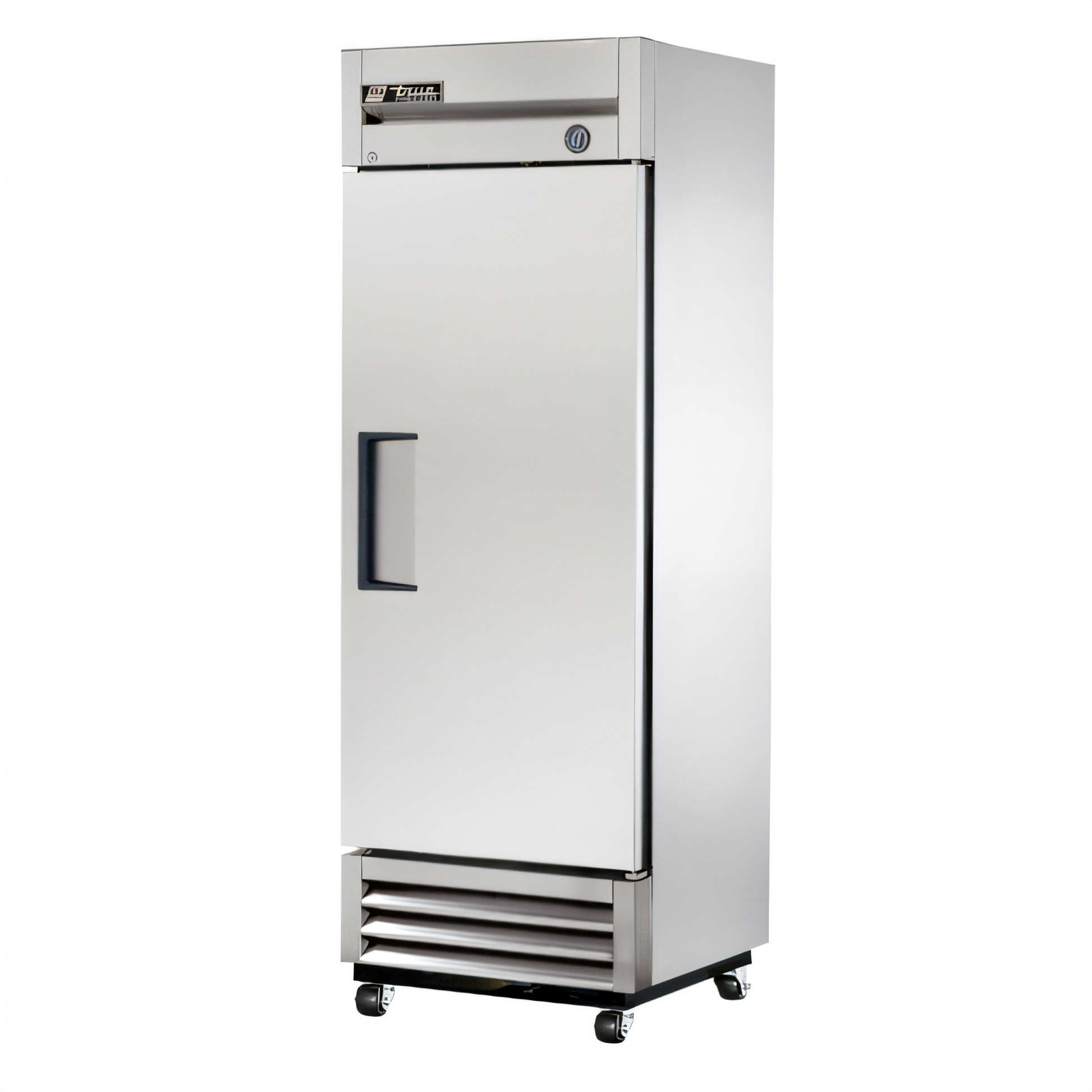

True T-19F-HC Reach-In Freezer
1-Section • -10°F Holding • Stainless Solid Door
Built for operators who refuse to compromise on performance or longevity, the ENERGY STAR® qualified
True T-19F-HC maintains –10°F (–23.3 °C) cabinet temperatures while trimming utility costs. A rugged
stainless-steel exterior, natural R290 refrigeration and an industry-leading 7-year warranty protect your
investment shift after shift.
Key Benefits
- Self-contained, factory-balanced capillary tube system uses eco-friendly R290 hydrocarbon refrigerant and a ½ HP compressor to hold –10°F—ideal for hard-scoop ice cream and frozen foods.
- Electronically commutated (ECM) fan motors and automatic, time-initiated/temperature-terminated defrost reduce energy consumption.
- Stainless-steel solid door and front for superior dent & scratch resistance; positive-seal, self-closing door with lifetime-guaranteed hinges.
- Three heavy-duty, PVC-coated wire shelves (22 ⅞″ × 18 ¼″) adjust on ½″ increments for flexible storage.
- LED interior lighting and clear-coated aluminum liner with coved stainless floor speed up product ID and cleanup.
- Bottom-mounted compressor places the mechanics in the coolest, most grease-free area of the kitchen, provides a “no-stoop” lower shelf, and frees up storage space on top of the cabinet.
- 2 ½″ diameter castors (front two locking) make relocating the unit for cleaning a one-person job.
- NSF/ANSI 7, cULus, UL EPH Classified & ENERGY STAR® listings ensure food-safety compliance and energy efficiency.
At-a-Glance Specifications
| Model |
T-19F-HC |
| Configuration |
1 section • 1 solid swing door |
| Temperature Range |
–10°F (–23.3 °C) |
| Shelving |
3 adjustable PVC-coated wire shelves |
| Exterior Construction |
Stainless door & front • Anodized aluminum sides • GalFan-coated steel back |
| Interior Construction |
Clear-coated aluminum walls • Stainless steel floor with coved corners |
| Refrigeration |
Self-contained R290 system • ½ HP compressor |
| Defrost |
Automatic (time-initiated / temperature-terminated) |
| Electrical |
115 V / 60 Hz / 1-ph • 3.7 A • NEMA 5-15P |
| Dimensions (W × D × H) |
27″ × 24 ½″ × 78 15⁄16″* (686 × 623 × 2006 mm) |
| Cord Length |
9 ft (2.74 m) |
| Crated Weight |
265 lb (120 kg) |
| Certifications |
cULus • UL EPH • ENERGY STAR® |
| Warranty |
7-year parts, labor & compressor (USA/Canada/Puerto Rico) |
*Height includes 2 ½″ castors.
Optional Accessories
- 6″ (153 mm) legs — standard or seismic/flanged
- Additional shelves
- Novelty baskets
Electrical: Unit ships with a NEMA 5-15P plug and requires a dedicated
115 V/60 Hz/1-phase, 15 A receptacle. Verify local codes before installation.
International voltage models (220–240 V/50–60 Hz) are factory available—contact us for details.
