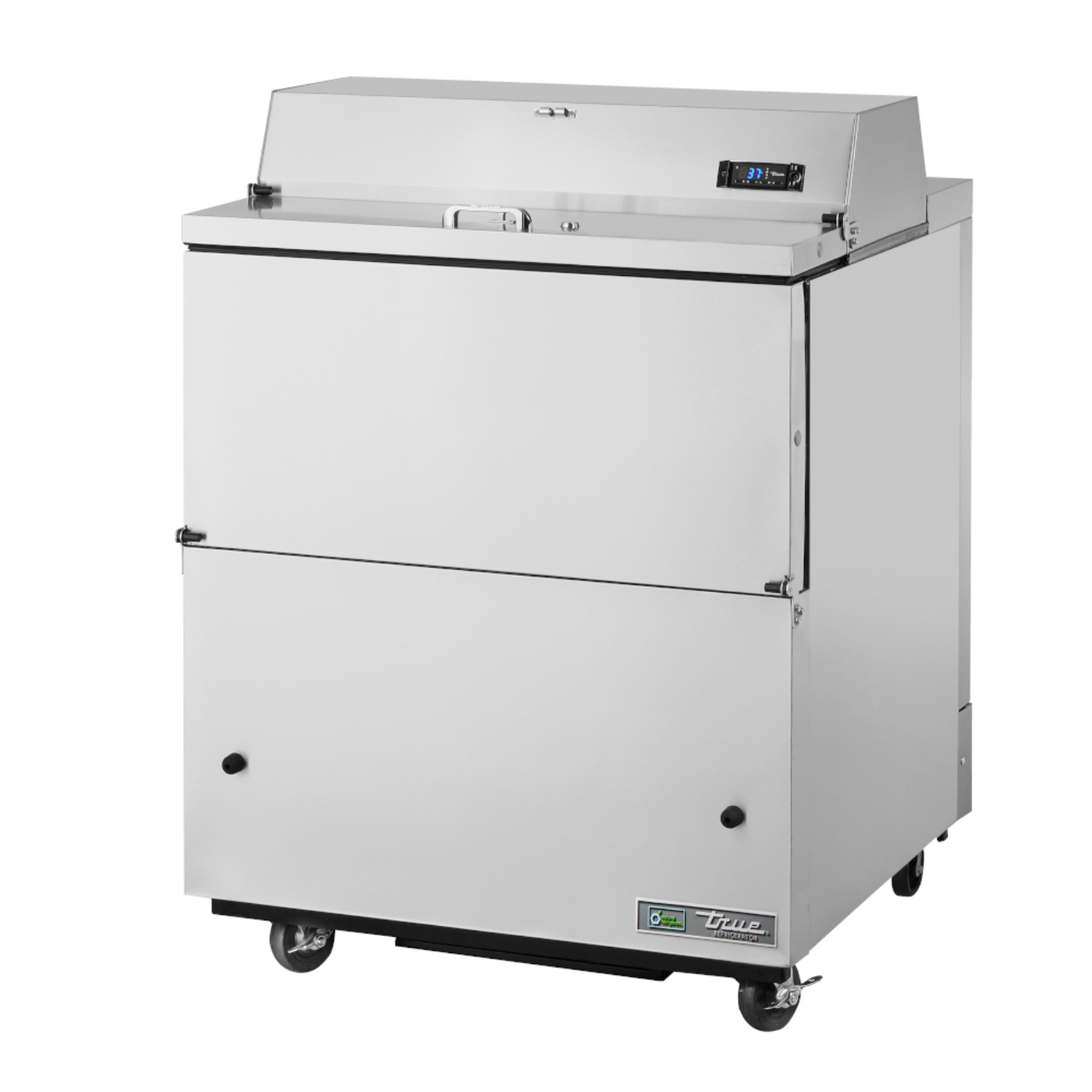

True TMC-34-S-SS-HC Forced Air Stainless Steel Interior & Exterior Mobile Milk Cooler - TRMC34SSS
The True TMC-34-S-SS-HC is an attractive and durable single sided school milk cooler. The all stainless steel self-service doors feature convenient drop front and "hold-open" flip-up top. It features an all stainless steel interior and exterior. The entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
The TMC-34-S-SS-HC uses the new environmentally friendly R290 hydrocarbon refrigerant. The energy efficient, factory balanced, refrigeration system holds 33°F to 38°F. This cooler is designed to hold Eight 13"L x 13"D x 11-1/8"H (331 mm x 331 mm x 296 mm) milk crates.
Features
- Factory engineered, self-contained, capillary tube system using environmentally friendly R290 hydro carbon refrigerant that has zero (0) ozone depletion potential (ODP), & three (3) global warming potential (GWP).
- High capacity, factory balanced refrigeration system that maintains cabinet temperatures of 33°F to 38°F for the best in food preservation.
- State of the art, electronically commutated evaporator and condenser fan motors. ECM motors operate at higher peak efficiencies and move a more consistent volume of air which produces less heat, reduces energy consumption and provides greater motor reliability.
- Condensing unit accessed from behind back grill, slides out for easy cleaning and maintenance.
CABINET CONSTRUCTION
- Exterior - all stainless steel front, sides, back and top.
- Interior - Stainless steel walls and reinforced floor. Standard with heavy duty floor racks.
- Insulation - entire cabinet structure is foamed-in-place using a high density, polyurethane insulation that has zero ozone depletion potential (ODP) and zero global warming potential (GWP).
- Welded, heavy duty steel frame rail, black powder coated for corrosion protection.
- Frame rail fitted with four (4) easy roll, 4" (102 mm) diameter swivel castors (front castors lock in place).
- Designed to hold Eight 13"L x 13"D x 11-1/8"H (331 mm x 331 mm x 296 mm) milk crates.
DOOR
- All stainless steel self-service doors feature convenient drop front and "hold-open" flip-up top. Door support bumpers standard.
- Door locks standard.
- Magnetic door gaskets of one piece construction, removable without tools for ease of cleaning.
MODEL FEATURES
- Exterior digital temperature display.
- Evaporator is epoxy coated to eliminate the potential of corrosion.
- Convenient clean out drain with 1/2" (13 mm) NPT-PVC drain plug.
- Wide gaskets.
- This unit meets Department of Energy 2017 standards.
- Listed under NSF/ANSI Standard 7 for the storage and/or display of packaged or bottled product.
ELECTRICAL
- Unit completely pre-wired at factory and ready for final connection to a 115/60/1 phase, 15 amp dedicated outlet. Cord and plug set included.
Specifications
| Model |
TMC-34-S-SS-HC |
| Doors |
2 |
| Crate Capacity |
8 |
| Electrical |
|
| – Horsepower (HP) |
1/5 |
| – Voltage |
115V |
| – Frequency |
60 Hz |
| – Phase |
Single (1) |
| – Amps |
2.7 |
| – Plug Type |
5-15P NEMA |
| – Cord Length |
9 ft |
| Dimensions |
34" W x 33" D x 41-5/8" H |
What our Experts Think
-
Capacity: Accommodates up to eight crates, each measuring 13" x 13" x 11-1/8", providing ample storage for milk cartons.
-
Construction: Featuring durable stainless steel interiors, exteriors, and floor, the cooler ensures longevity and simplifies cleaning.
-
Refrigeration System: Equipped with a forced-air refrigeration system that maintains temperatures between 33°F and 38°F, utilizing environmentally friendly R290 hydrocarbon refrigerant.
-
Mobility: Mounted on four 4" castors, the cooler is easily movable, facilitating convenient placement and cleaning.
-
Design: Comes with two side-opening doors for easy access, each featuring a lock to prevent unauthorized access.
-
Dimensions: Measures 34" in width, 33-3/8" in depth, and 41-5/8" in height, fitting comfortably in various spaces.
-
Electrical Specifications: Operates on 115V/60Hz/1-phase power, drawing 2.7 amps, and comes with a 9-foot cord and NEMA 5-15P plug.
Q&A
Q: Is the cooler easy to move?
Yes, the cooler is equipped with four 4-inch castors, facilitating easy mobility within your facility
Q: What are the electrical requirements for this unit?
The True TMC-34-S-SS-HC operates on 115V electrical power, drawing 2.7 amps, and comes with a NEMA 5-15P plug.
Q: What is the weight of the cooler?
The unit weighs approximately 345 lbs (157 kg).
Q: Is this cooler suitable for outdoor use?
The True TMC-34-S-SS-HC is designed for indoor use in commercial environments. Using it outdoors may affect its performance and void the warranty.
Maintenance Tips
-
Capacity: Accommodates up to eight 13" x 13" x 11-1/8" crates, providing ample storage for milk cartons.
-
Construction: Built with stainless steel interior, exterior, and floor, ensuring durability and ease of cleaning.
-
Refrigeration: Features a forced-air system that maintains temperatures between 33°F and 38°F, utilizing environmentally friendly R290 hydrocarbon refrigerant.
-
Mobility: Equipped with 4" castors, allowing for easy movement and placement within your facility.
