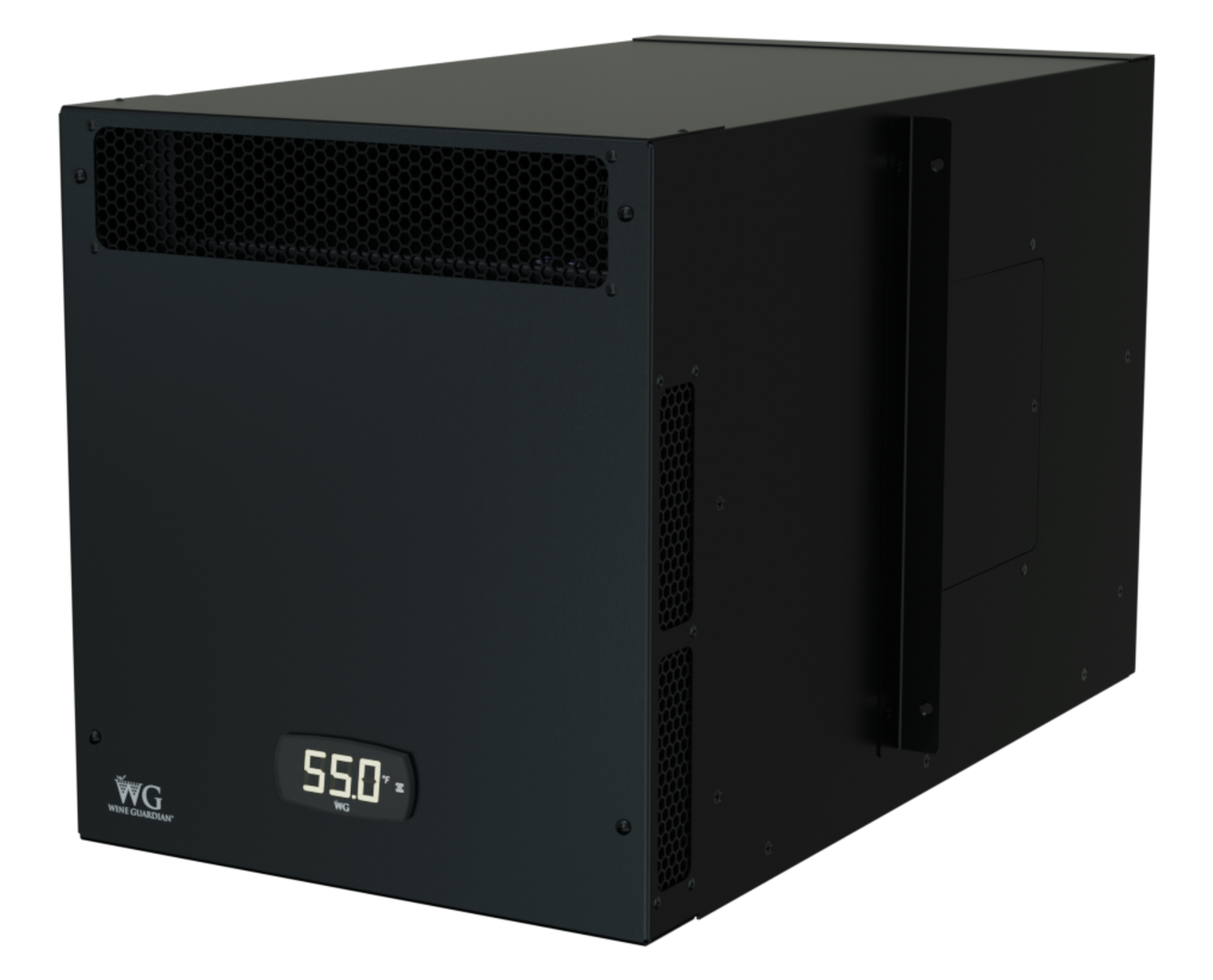

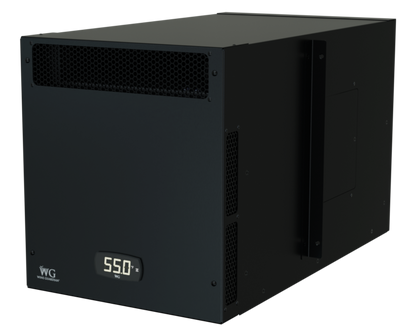

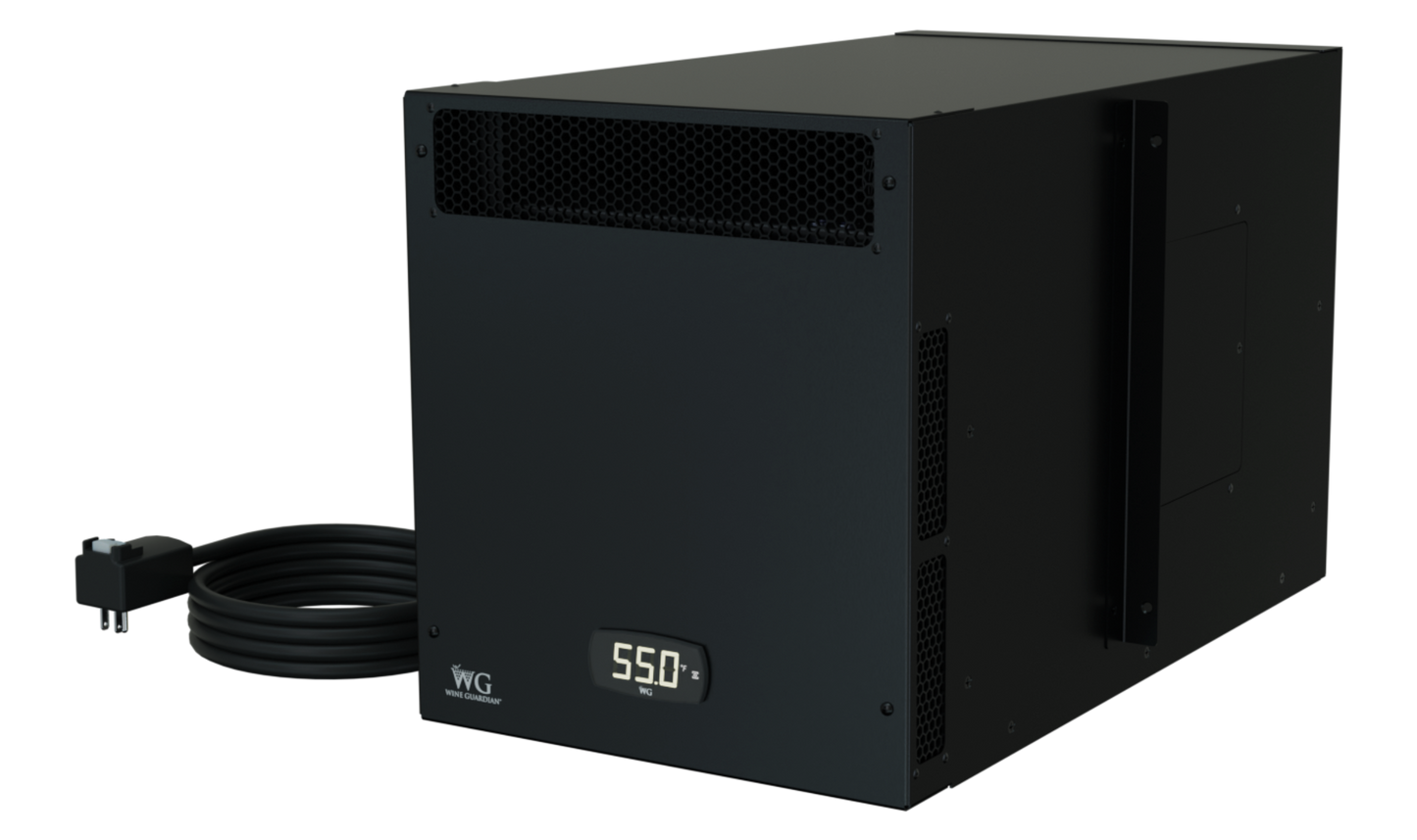

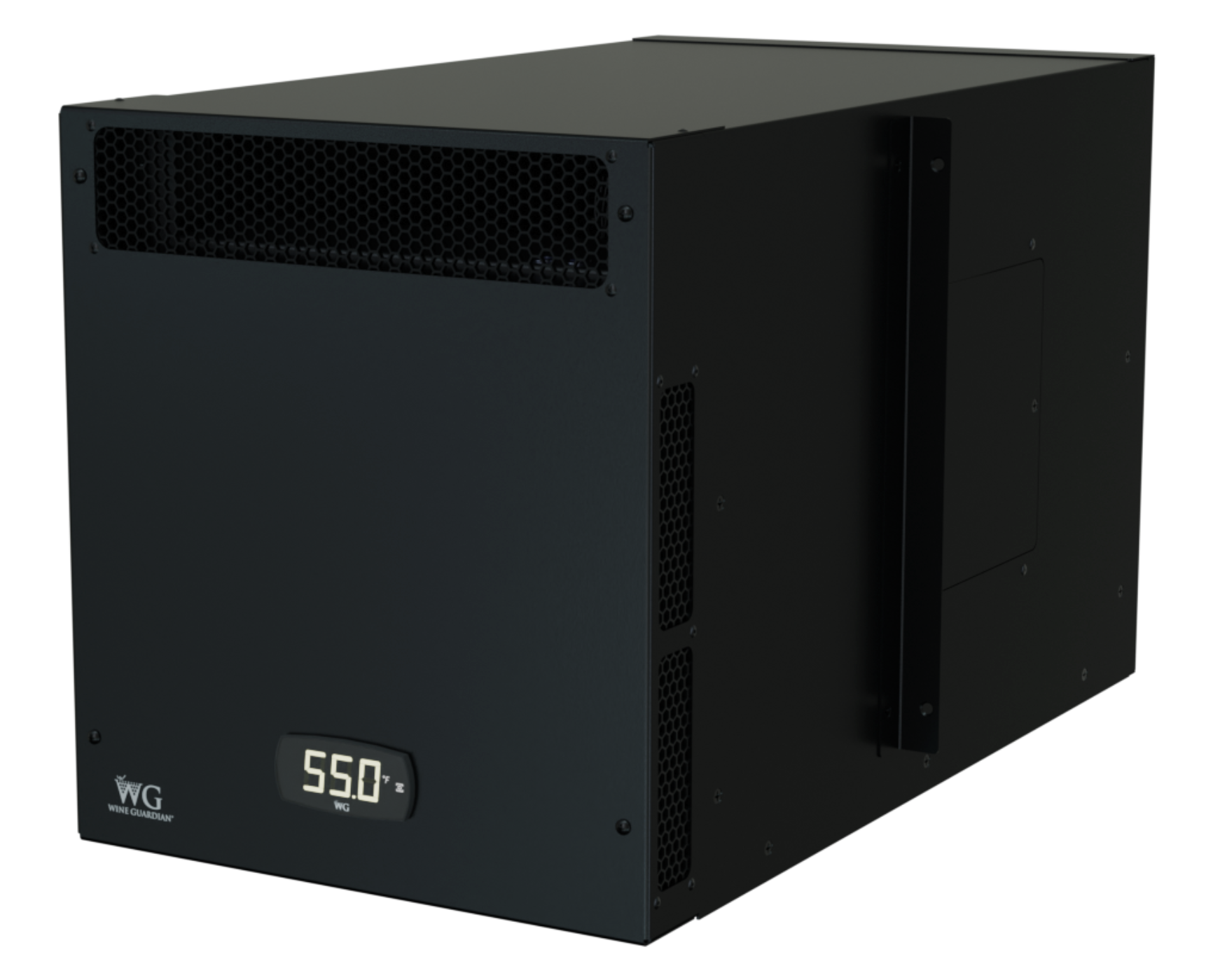

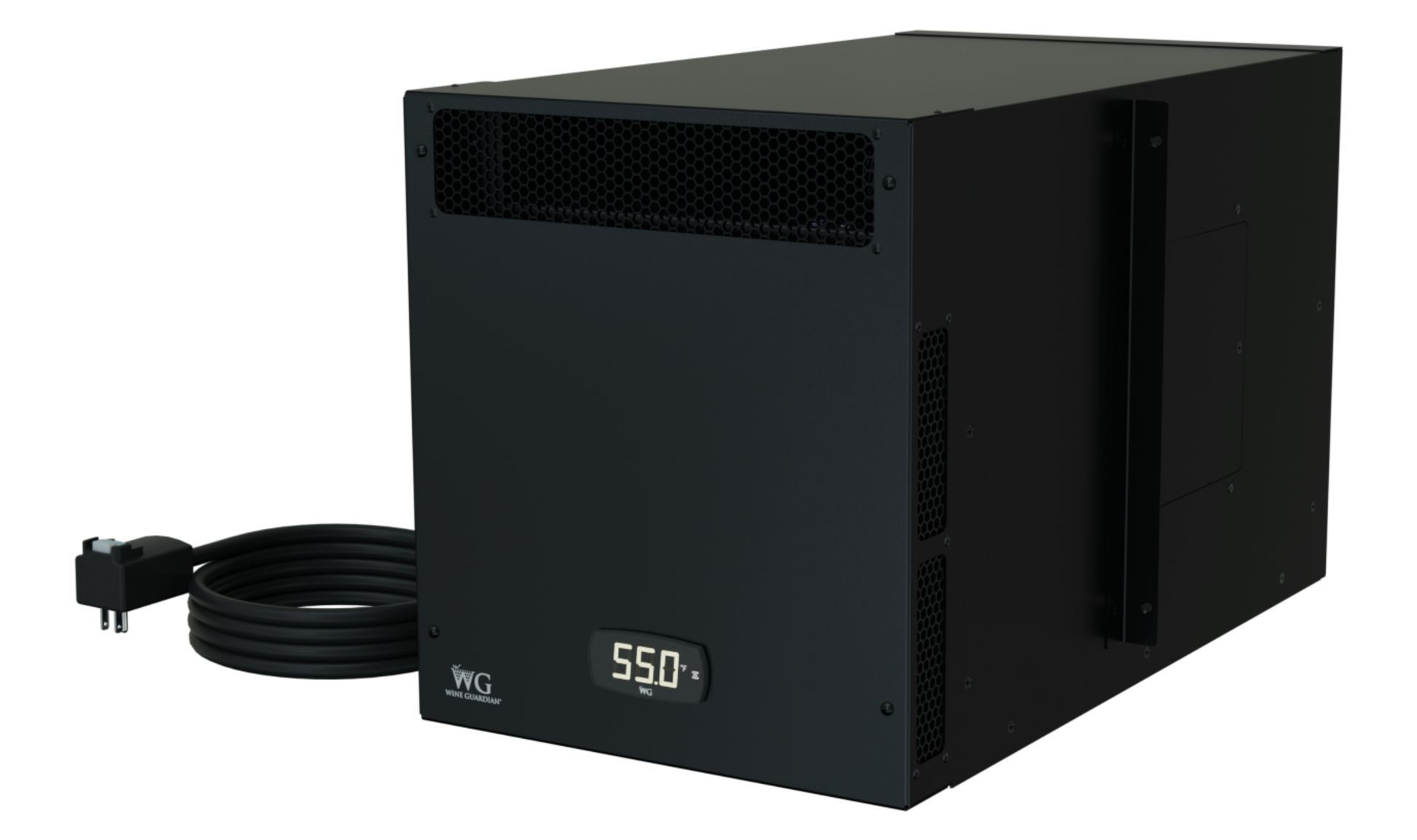

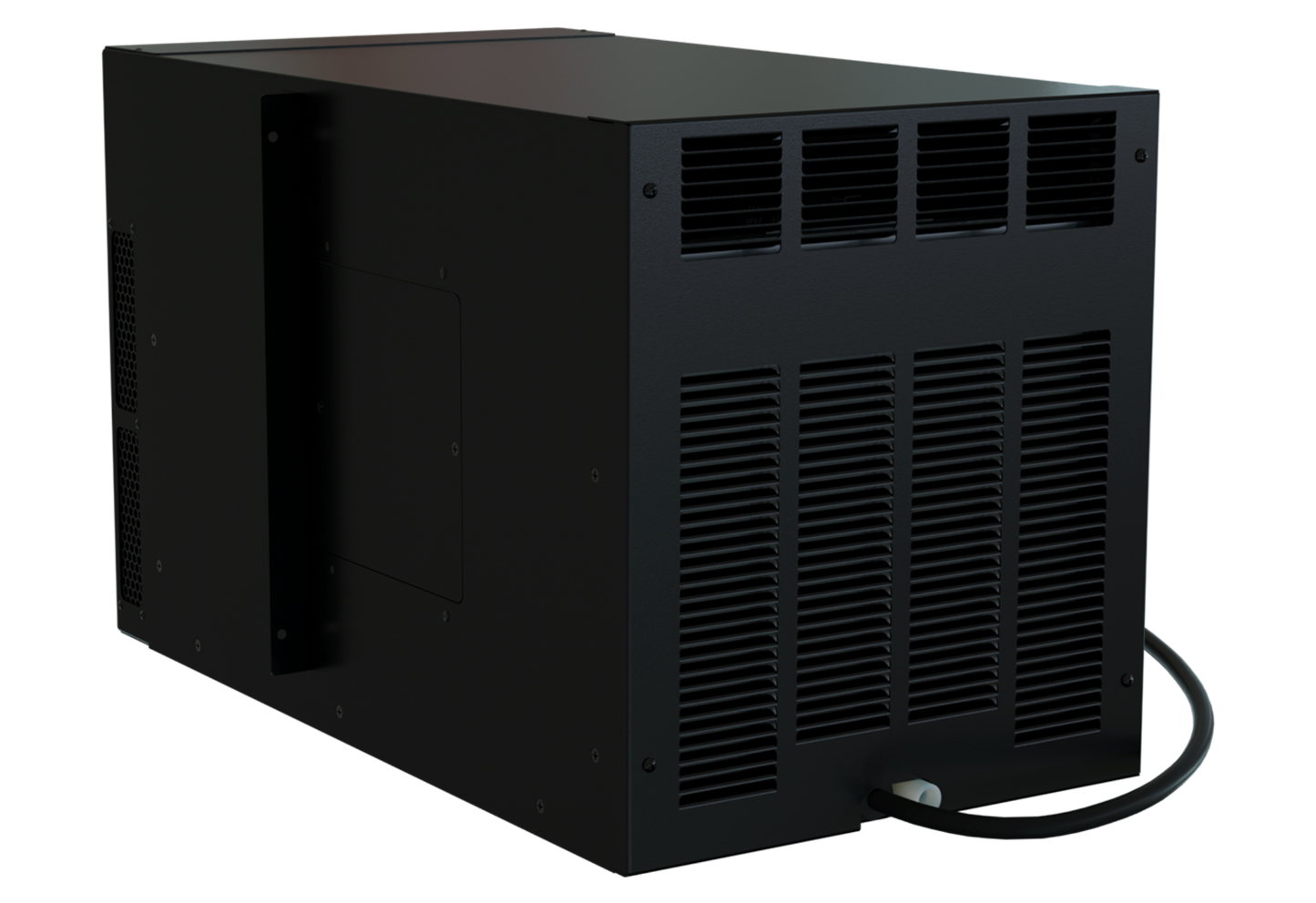

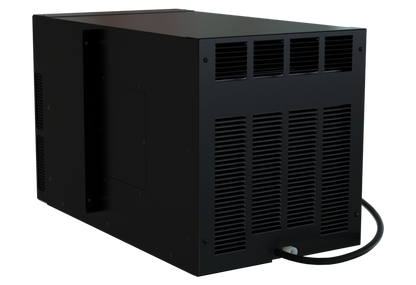

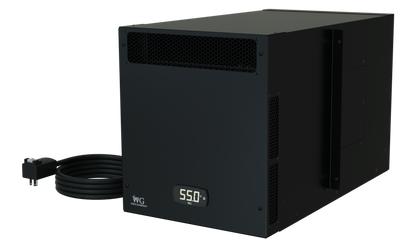

Wine Guardian TTW01 Classic - Through the Wall Wine Cellar Cooling Unit - 50Hz - 1779454734555_101
The Wine Guardian TTW01 Classic Series offers essential wine cellar cooling at an exceptional value. With a standard plug connection and simplified design, this unit offers precise temperature control and effortless installation for indoor use.
What our Experts Think
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Q&A
Q: What is the Wine Guardian TTW01 Classic Through-the-Wall Wine Cellar Cooling Unit (50Hz)?
A: It is an entry-level, through-the-wall wine cellar cooling system designed to maintain stable temperature control for small wine cellars using a simplified, value-focused design.
Q: What is the cooling capacity of this unit?
A: The TTW01 Classic provides approximately 0.422 kW (about 1,440 BTU/h), making it suitable for small, well-insulated wine rooms or compact cellar spaces.
Q: What is the main difference between the Classic and other Wine Guardian TTW models?
A: The Classic series focuses on essential cooling performance with fewer advanced featuresāno humidifier compatibility and no exterior wall ratingāmaking it a more cost-effective option compared to Sentinel or Defender models.
Q: Can this unit be installed through an exterior wall?
A: No. The TTW01 Classic is intended for indoor through-the-wall installation only and is not rated for exterior wall exposure.
Q: Does it control humidity as well as temperature?
A: It controls temperature only. Unlike higher-end models, it is not compatible with humidifiers for active humidity regulation.
Q: What type of power does the 50Hz version use?
A: The 50Hz model is designed for international electrical regions (typically 220ā240V systems used in Europe, Asia, Africa, and Australia).
Ā Ā Ā Ā Ā Ā Ā Ā Ā Ā
Maintenance Tips Ā
- Clean or replace air filters regularly to maintain strong airflow and stable cellar temperature control
- Keep both evaporator (indoor) and condenser (exhaust) vents clear of dust and obstructions for efficient heat exchange
- Wipe exterior grille and housing periodically to prevent dust buildup that can restrict airflow
- Inspect and clear condensate drain system to avoid water overflow or internal moisture issues
- Ensure the through-the-wall sleeve is properly sealed to prevent warm air infiltration and system overworking
- Check electrical supply (240V / 50Hz) for stability to avoid compressor stress or intermittent operation
- Avoid blocking internal cellar airflow to maintain even cooling distribution and consistent wine storage conditions
- Maintain a stable ambient environment on the exhaust side to prevent overheating and reduced efficiency
- Periodically verify temperature settings to keep optimal wine storage range (typically ~6ā18Ā°C)
- Inspect mounting and support frame to ensure secure installation and reduce vibration over time
- In colder climates, use low-ambient protection (if installed) to prevent system damage at low outdoor temps
- Schedule periodic professional servicing to check refrigerant levels, compressor health, and overall system performanceĀ Ā
