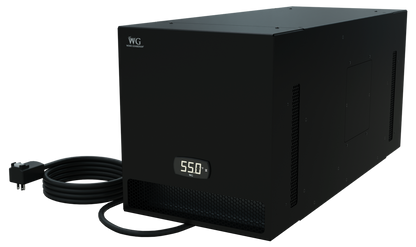

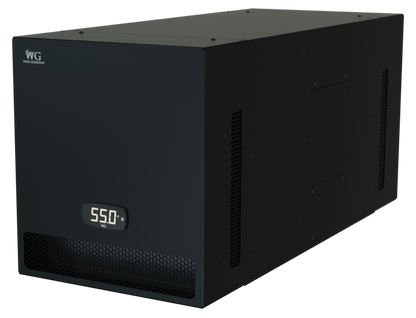

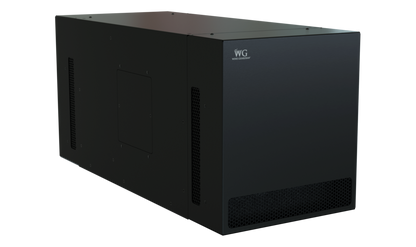

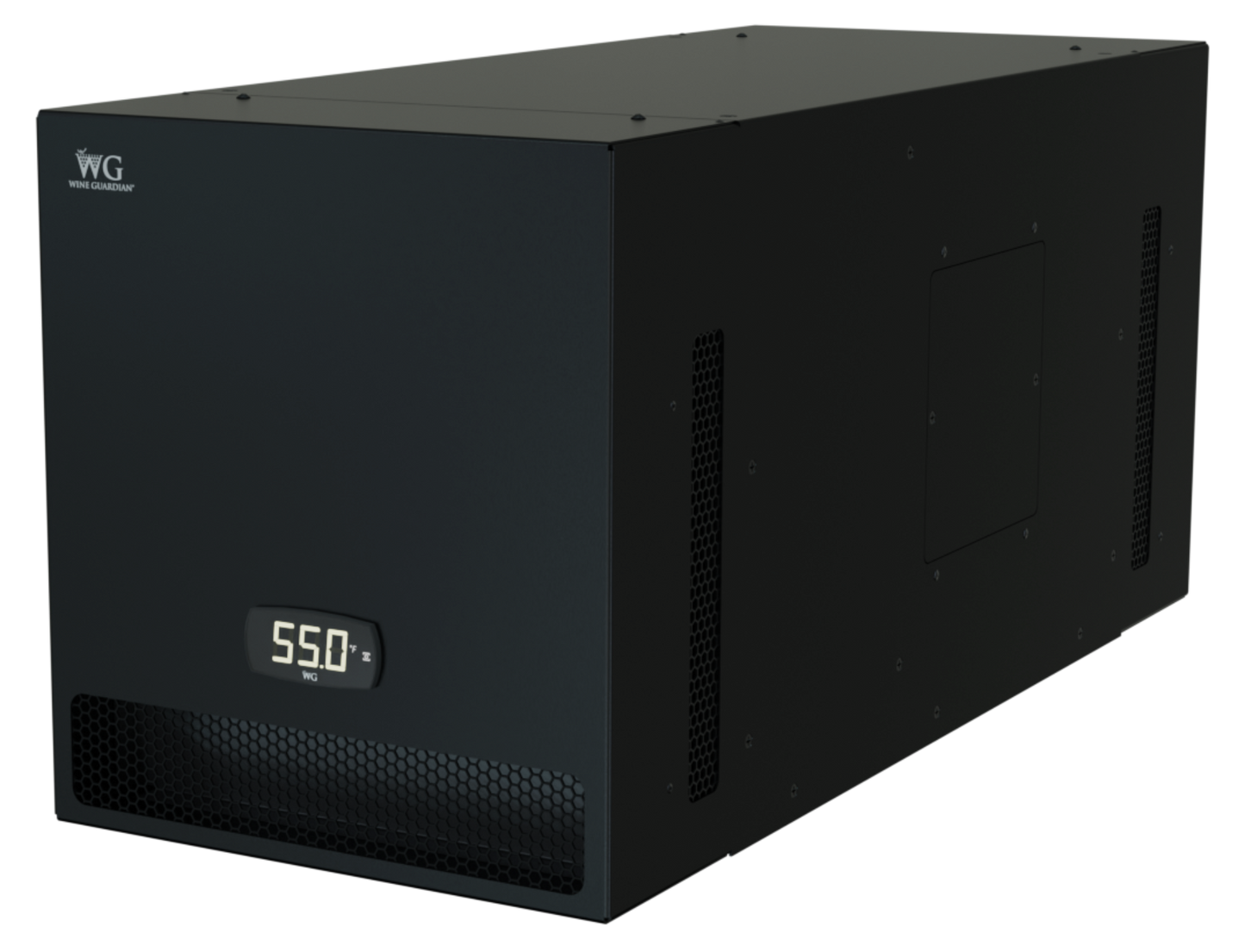

Wine Guardian TTW01B Defender - Through the Wall Wine Cellar Cooling Unit - 1779454686795_4
The Wine Guardian Defender Series is a Through-the-Wall wine cooling unit rated for exterior wall installations. Its sound-attenuated design delivers quiet, efficient cooling while protecting your wine collection in any environment.
The TTW01B is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The maximum capacity of this unit is 1440 BTU/h.
Uses the standard USA Type B plug.
What our Experts Think
- The Wine Guardian TTW01B Defender is a premium through-the-wall wine cellar cooling unit engineered for stable temperature and humidity control in small wine rooms and display cellars
- Delivers approximately 1,440 BTU/h (0.42 kW) of cooling capacity, making it ideal for properly insulated compact cellars requiring consistent long-term preservation conditions
- Part of the Defender Series, it represents the highest tier in the TTW lineup, offering enhanced durability, insulation, and environmental protection features
- Built with advanced sound attenuation and vibration reduction, enabling quiet operation suitable for residential spaces, restaurants, and boutique wine displays
- Designed for through-the-wall installation, allowing a clean, space-efficient setup without ductwork or complex HVAC integration
- Includes integrated temperature control with humidity sensor compatibility, helping maintain optimal wine storage conditions (~55–65% RH)
- Supports smart connectivity via Bluetooth/NFC, enabling easy monitoring and adjustments directly from compatible devices
- Engineered with fail-safe protections (pressure, overflow, and compressor safeguards) for long-term reliability and reduced maintenance risk
- Experts position it as a top choice for serious collectors and hospitality venues needing precise, quiet, and dependable cellar climate control in compact spaces
Q&A
Q: What is the Wine Guardian TTW01B Defender Through-the-Wall Wine Cellar Cooling Unit?
A: It is a commercial-grade through-the-wall wine cooling system designed to maintain stable temperature control in small wine cellars, with enhanced durability, noise reduction, and optional exterior-wall installation capability.
Q: What cooling capacity does the TTW01B Defender provide?
A: It delivers approximately 1,440 BTU/h, making it suitable for small, properly insulated wine rooms and compact cellar installations.
Q: What makes the Defender version different from Classic and Sentinel models?
A: The Defender series adds the highest level of features in the TTW lineup, including extra sound attenuation, humidity sensing with humidifier compatibility, and exterior wall installation capability for harsher environments.
Q: Can this unit be installed through an exterior wall?
A: Yes. The Defender series is specifically designed for exterior wall installations and can operate in a wide ambient temperature range, making it more versatile than indoor-only models.
Q: Does it help control humidity as well as temperature?
A: Yes. It includes a humidity sensor and supports connection to a freestanding humidifier for maintaining ideal wine storage humidity (typically around 55–65%).
Q: Is this unit quiet during operation?
A: Yes. It uses internal sound reduction materials and can operate at low noise levels compared to standard cooling systems, making it suitable for residential wine cellars.
Q: What type of installation does it require?
A: It is designed for through-the-wall installation between studs and is intended for properly insulated wine rooms to maintain stable long-term storage conditions.
Maintenance Tips
- Keep air intake and exhaust grilles clean and completely unobstructed to maintain stable heat exchange and prevent compressor strain
- Clean or replace air filters regularly to ensure consistent airflow and accurate temperature control in the wine cellar
- Inspect and clear the condensate system (drain or evaporative tray) to prevent overflow, leaks, and humidity issues
- Wipe exterior housing and grille surfaces with a soft cloth to prevent dust buildup that reduces cooling efficiency
- Ensure wall sleeve and surrounding installation area are fully sealed to stop warm air infiltration and energy loss
- Maintain proper clearance on the condenser (exhaust) side to avoid overheating and reduced system performance
- Check electrical supply stability (50Hz model operation) to prevent compressor stress or intermittent shutdowns
- Verify cellar airflow paths remain open so cooled air circulates evenly around stored wine
- Periodically inspect mounting and vibration isolation to ensure quiet, stable operation over time
- In colder environments, confirm Defender low-ambient/heater function (if equipped) is working to prevent freeze damage
- Keep humidity within recommended cellar range (typically ~55–65%) for optimal wine preservation conditions
- Schedule periodic professional servicing to check refrigerant charge, sensors, and overall system efficiency
