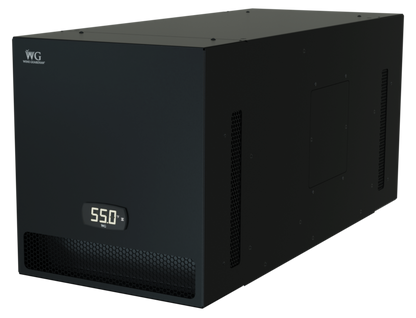

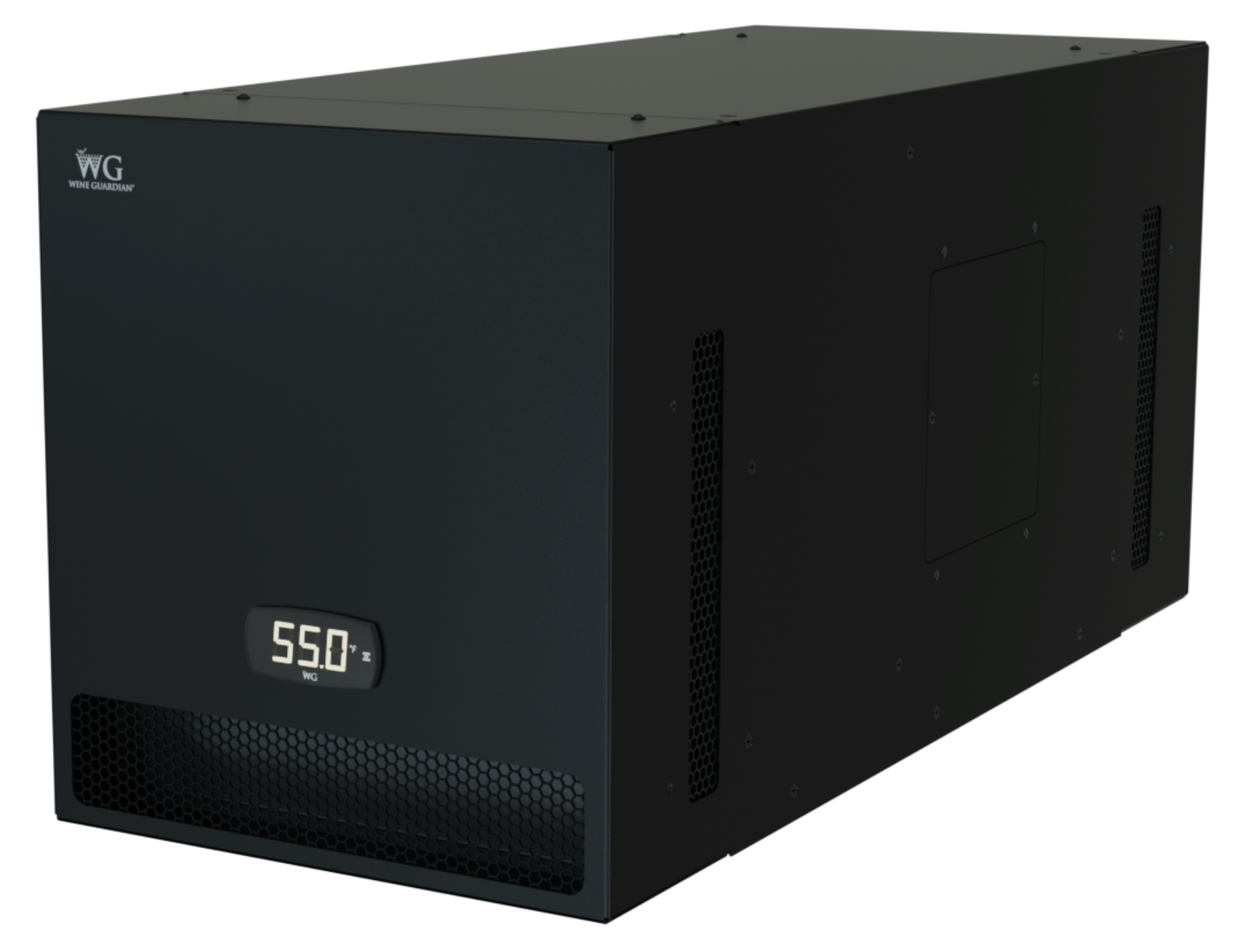

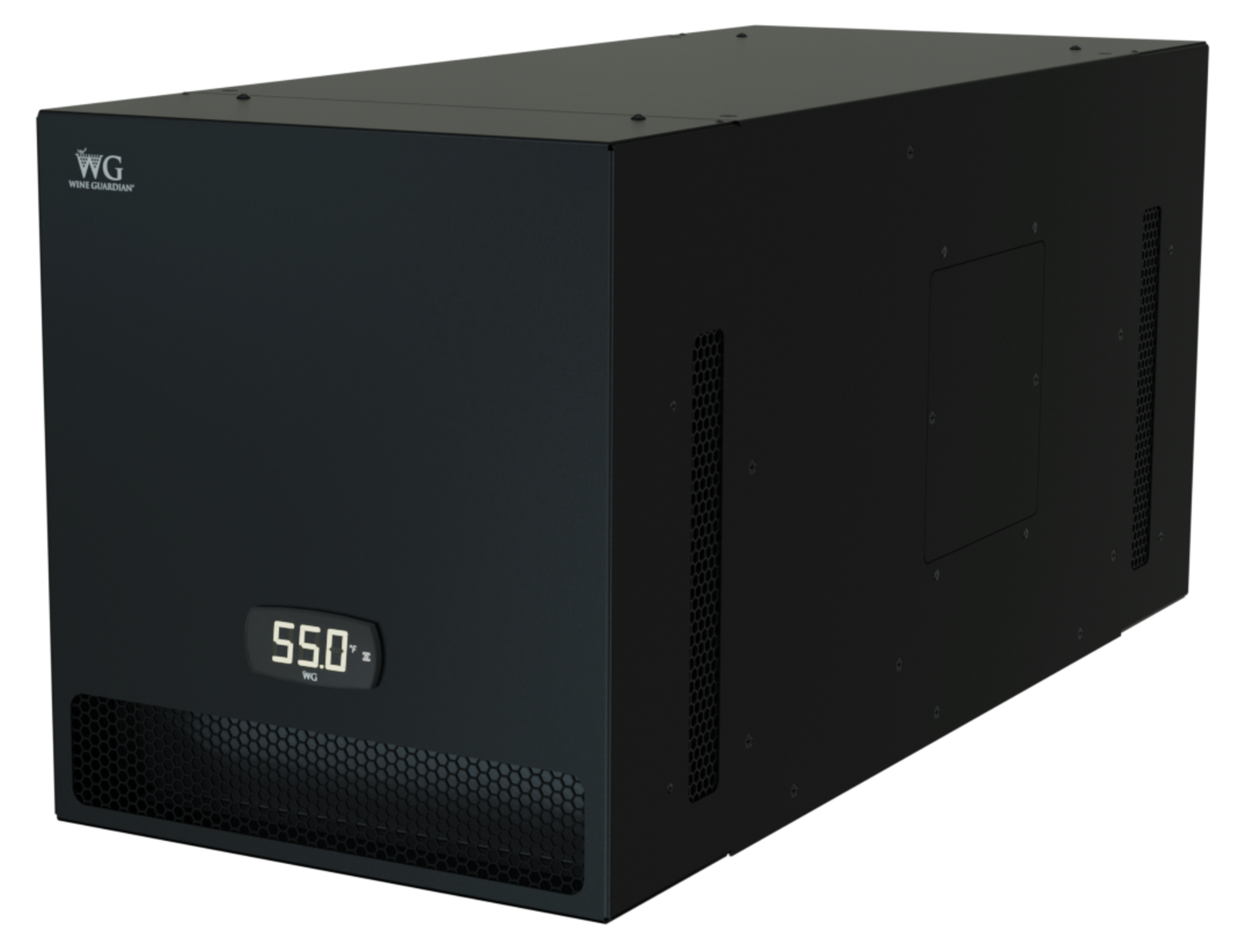

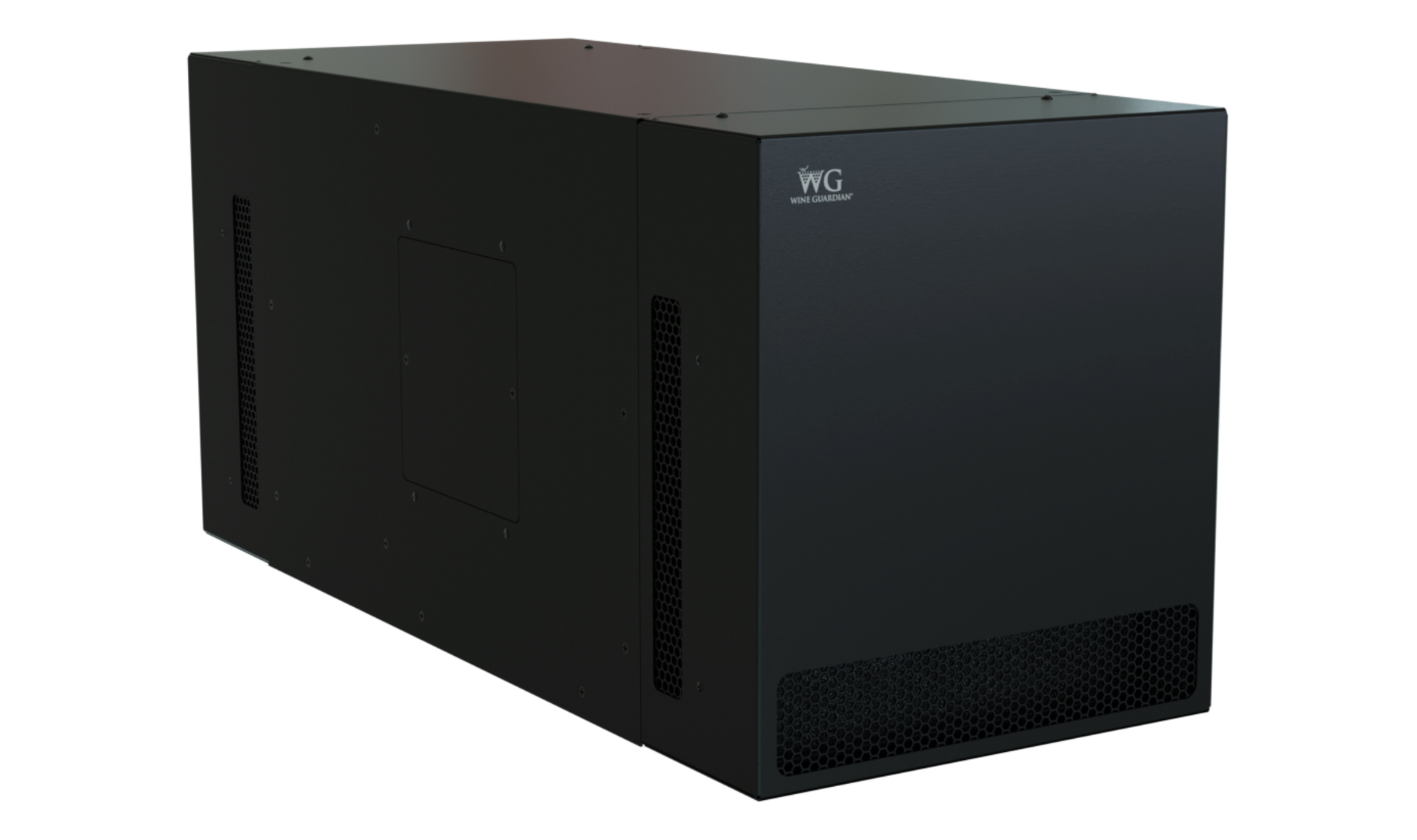

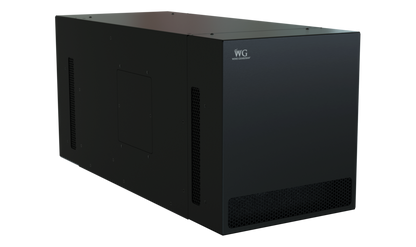

Wine Guardian TTW02B Defender - Through the Wall Wine Cellar Cooling Unit - 1779454713303_402
The Wine Guardian Defender Series is a Through-the-Wall wine cooling unit rated for exterior wall installations. Its sound-attenuated design delivers quiet, efficient cooling while protecting your wine collection in any environment.
The TTW01B is a 60Hz system, which is standard in most of North America (incl. USA & Canada). The maximum capacity of this unit is 2650 BTU/h.
Uses the standard USA Type B plugf
What our Experts Think
Q&A
Q: What is the Wine Guardian TTW02B Sentinel Through-the-Wall Wine Cellar Cooling Unit?
A: It is a commercial-grade through-the-wall wine cellar cooling system designed for small to mid-sized wine rooms, providing precise temperature control with smart monitoring features and improved efficiency.
Q: What are the key specifications of the TTW02B Sentinel?
A: It delivers approximately 2,650 BTU/h cooling capacity at standard conditions and operates on 120V/60Hz power with a plug-in design for indoor through-the-wall installation.
Q: What makes the Sentinel series different from Classic and Defender models?
A: The Sentinel series adds advanced features like humidity sensing, sound reduction foam, and Bluetooth/NFC smart controls for monitoring and adjusting cellar conditions remotely.
Q: Can this unit control humidity as well as temperature?
A: It includes a built-in humidity sensor and supports connection to a freestanding humidifier to maintain ideal cellar humidity levels for wine preservation.
Q: Is the TTW02B Sentinel suitable for exterior wall installation?
A: No. The Sentinel series is designed for interior through-the-wall installations only and is not rated for outdoor exposure.
Q: How loud is the TTW02B Sentinel during operation?
A: It operates at approximately 54–57 dBA depending on conditions, with sound-reduction materials helping minimize noise in residential environments.
Maintenance Tips
- Keep air intake and exhaust grilles clean and fully unobstructed to maintain proper airflow and stable cellar temperature control
- Clean or replace air filters regularly to prevent dust buildup and reduce strain on fans and compressor
- Inspect and clear the condensate drain or evaporative system to prevent leaks, overflow, and humidity issues
- Wipe exterior grille and housing with a soft cloth to avoid dust accumulation that reduces cooling efficiency
- Ensure the through-the-wall sleeve is properly sealed to prevent warm air infiltration and energy loss
- Maintain adequate clearance on the exhaust side to prevent overheating and performance drop
- Verify electrical supply stability (50Hz model operation) to protect compressor and control electronics
- Keep internal cellar airflow pathways unobstructed for even temperature and humidity distribution
- Periodically check mounting frame and vibration isolation to ensure quiet, stable operation
- Inspect and test humidity control integration (if used with optional humidifier) for proper cellar balance
- In colder environments, confirm heater or low-ambient protection (if installed) is functioning correctly
- Schedule periodic professional servicing to check refrigerant charge, sensors, and overall system efficiency
