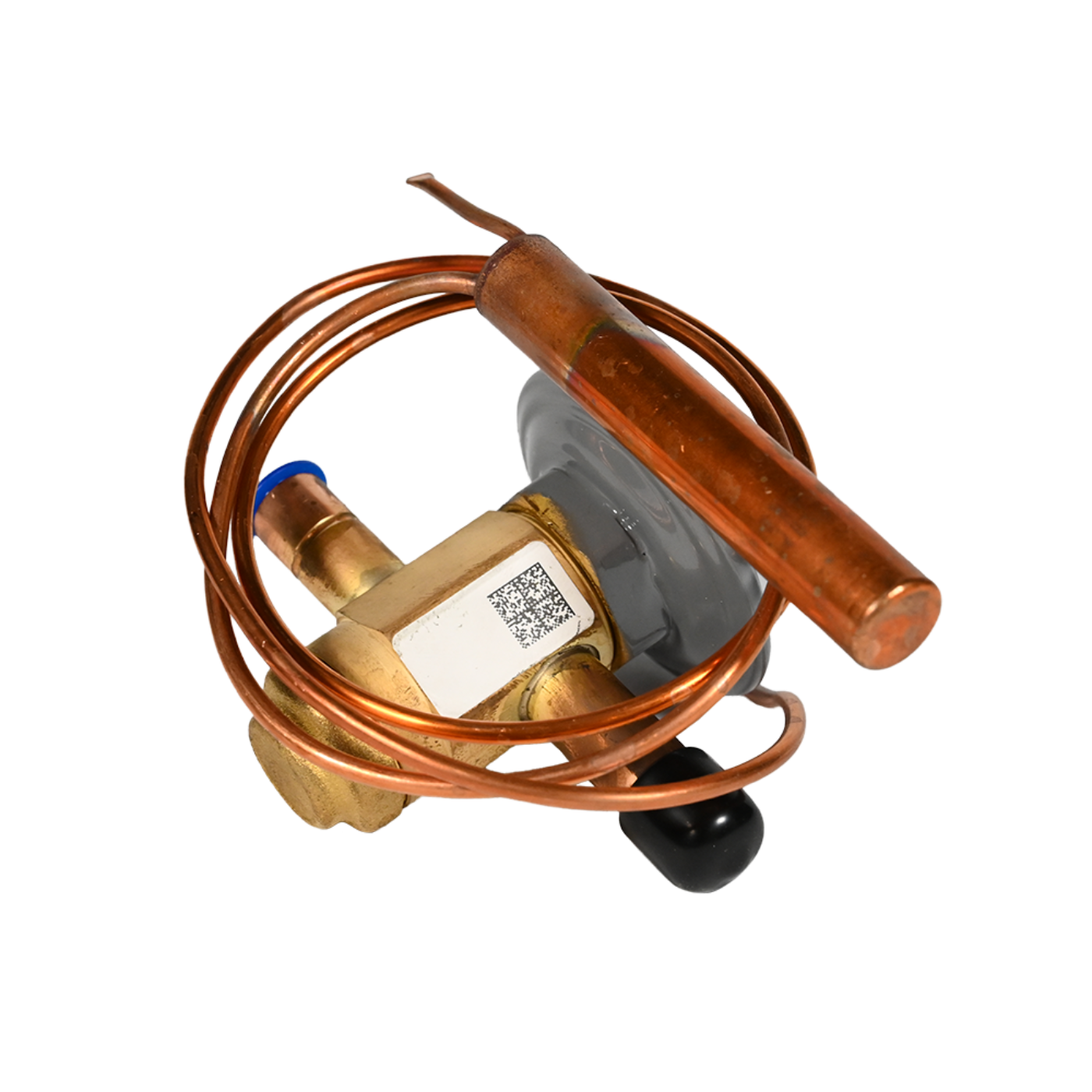

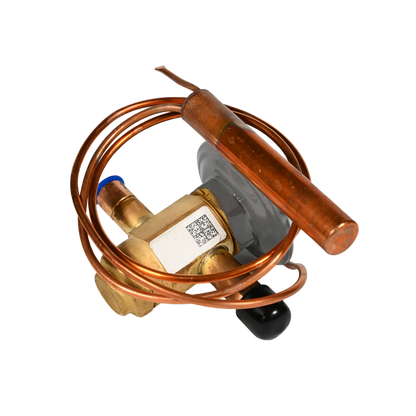

Wine Guardian TXV for some 050 - 1779459246310_360
Thermal expansion valve used in some 050 units.
Prior to purchasing this part, please contact one of our Applications Engineers (with model and serial number) at 315-452-7400 to confirm this part will work with your unit.
What our Experts Think
Q&A
Q: What is the Wine Guardian TXV for some 050 systems?
A: The TXV (Thermal Expansion Valve) in Wine Guardian D050 / DS050 systems is a refrigeration metering device that controls how much refrigerant flows into the evaporator coil, ensuring stable wine cellar temperature and preventing coil freeze-up or inefficient cooling.
Q: Which Wine Guardian systems use this TXV?
A: It is used in certain D050 / DS050 ducted and ducted split systems, depending on configuration and production revision.
Q: Is the TXV a replaceable service kit or internal part?
A: It is an internal sealed-system component, typically replaced only during major refrigeration repairs by a certified HVAC technician.
Q: What happens if the TXV fails?
A: The unit may experience poor cooling performance, coil freeze-up, compressor stress, or inability to maintain cellar temperature.
Q: Is the TXV interchangeable across all Wine Guardian models?
A: No. TXVs are model- and capacity-specific, so a D025, D050, and DS050 may each use different calibrated valves depending on system design.
Maintenance Tips
- Ensure refrigerant charge is correct to maintain stable TXV operation and prevent hunting
- Inspect evaporator coil cleanliness to avoid restriction that affects valve performance
- Check sensing bulb placement and insulation for proper temperature feedback accuracy
- Monitor for symptoms of TXV failure: icing, weak cooling, or unstable pressure readings
- Keep airflow across evaporator consistent to prevent superheat imbalance
- Verify system pressures during service to confirm proper valve metering behavior
- Replace TXV only with OEM-matched part to ensure correct BTU calibration
- Inspect for refrigerant contamination or moisture, which can cause valve sticking
- Ensure proper brazing and evacuation during installation to avoid internal blockage
- Schedule HVAC service if cooling becomes inconsistent or compressor short-cycles
