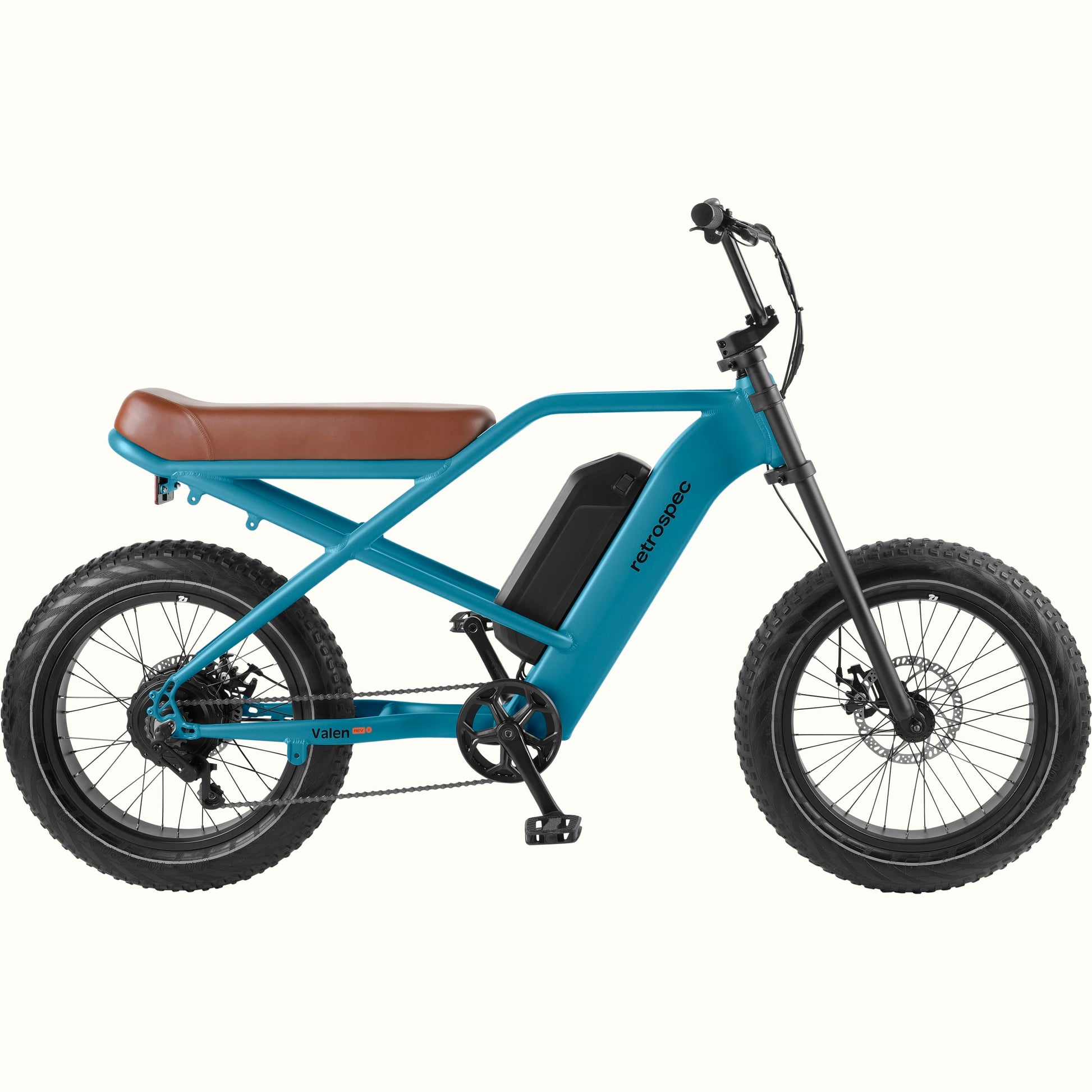

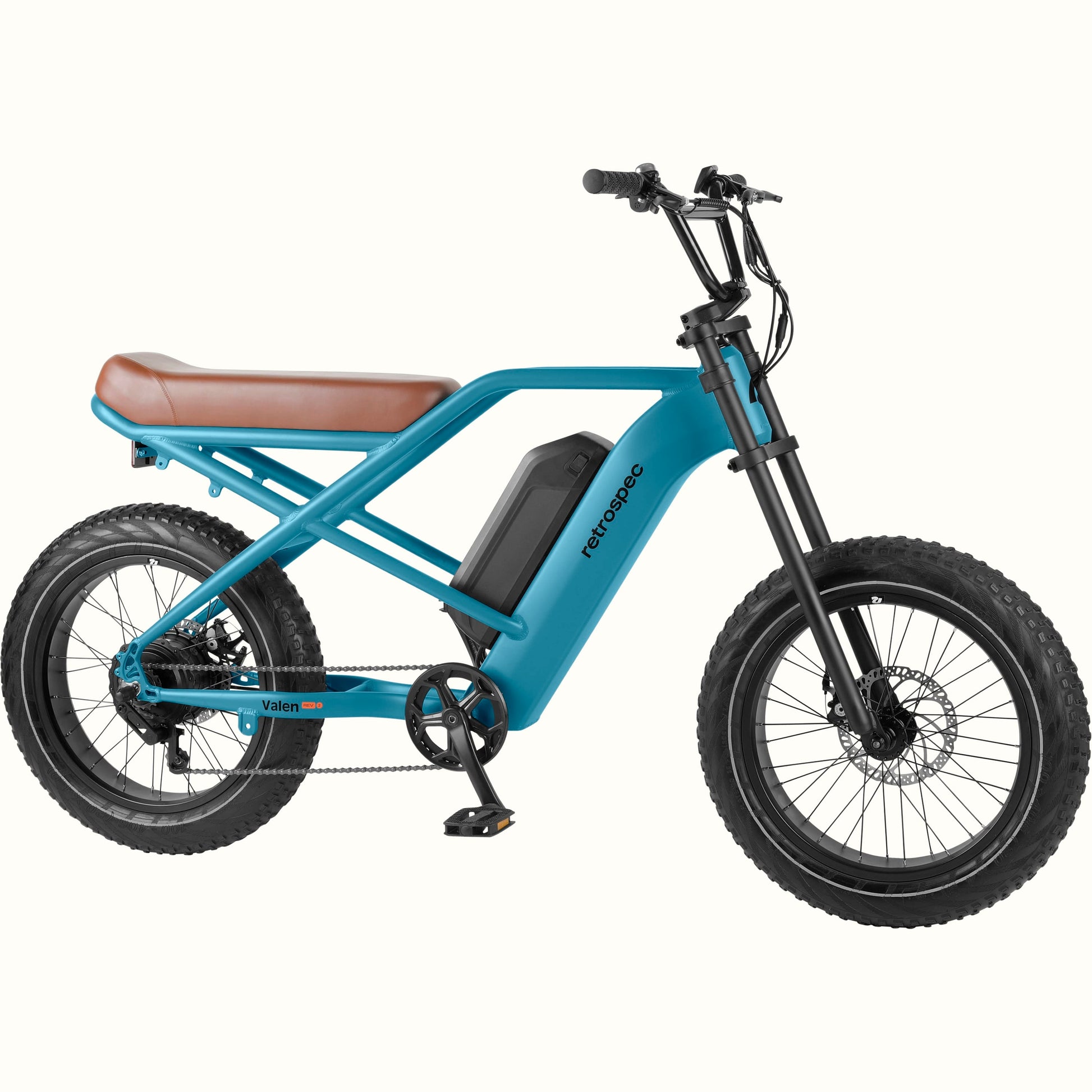

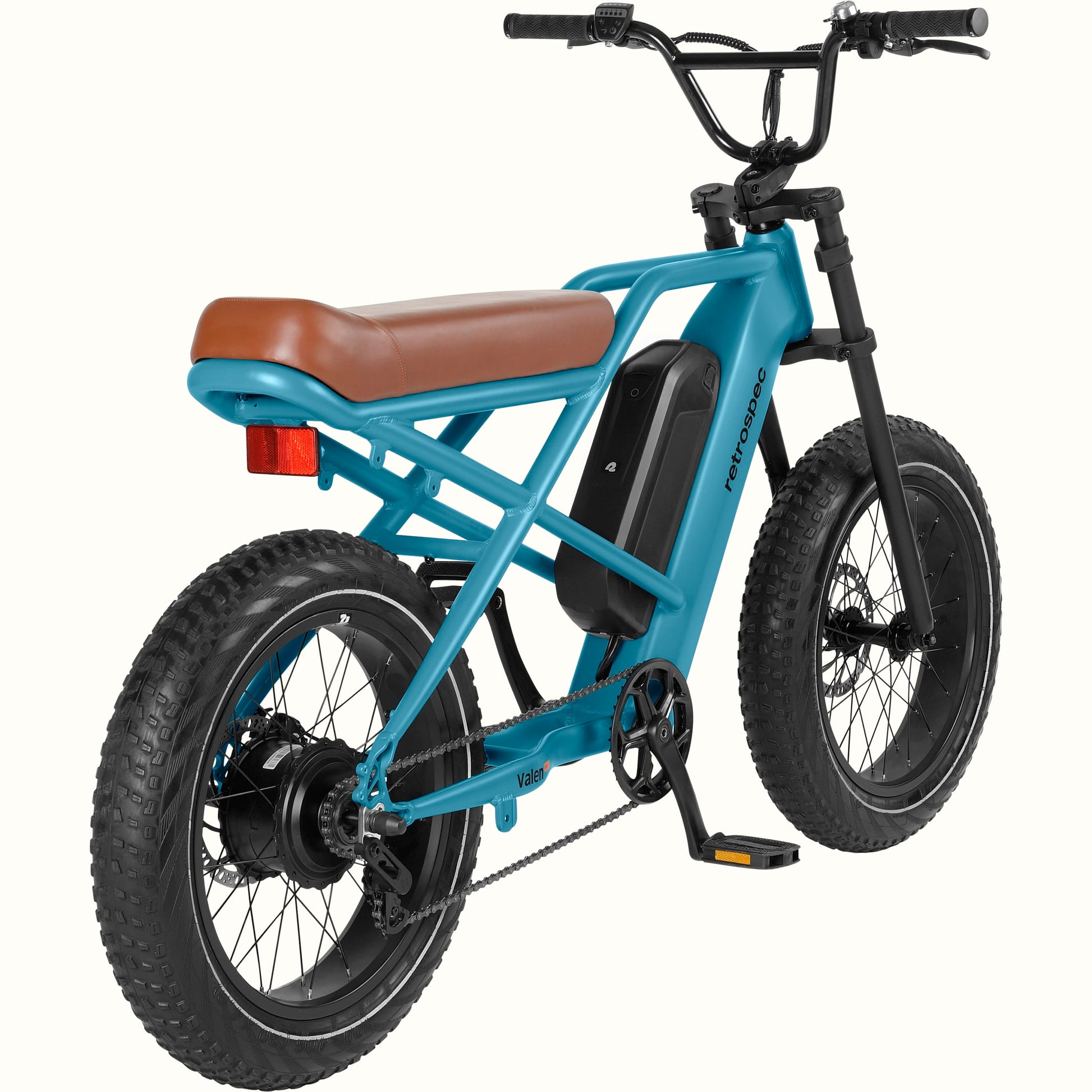

Retrospec Valen Rev 2 Fat Tire Electric Bike - 5785

Retrospec Valen Rev 2 Fat Tire Electric Bike - 5785

FRAMESET

• Sizes: 1 size Medium
• Material: Valen 6061 hydroformed aluminum with, external downtube battery and replacable derailleur hanger.
• Fork: Rigid Triple Clamp Steel fork.

WHEELSET

• Rims: 20" single-wall aluminum 36H, for disck brake
• Hubs: F: Aluminum bolt-on with 17mm axle nuts. 36 hole
• Spokes: 13G w/brass nipples
• Tires: 20x4" Fat MTB with puncture protection and reflective sidewall

E-POWER SYSTEM

• Motor: 750W rear hub
• Battery: 500Wh/48VLG 21700 cells; Charge on or off bike

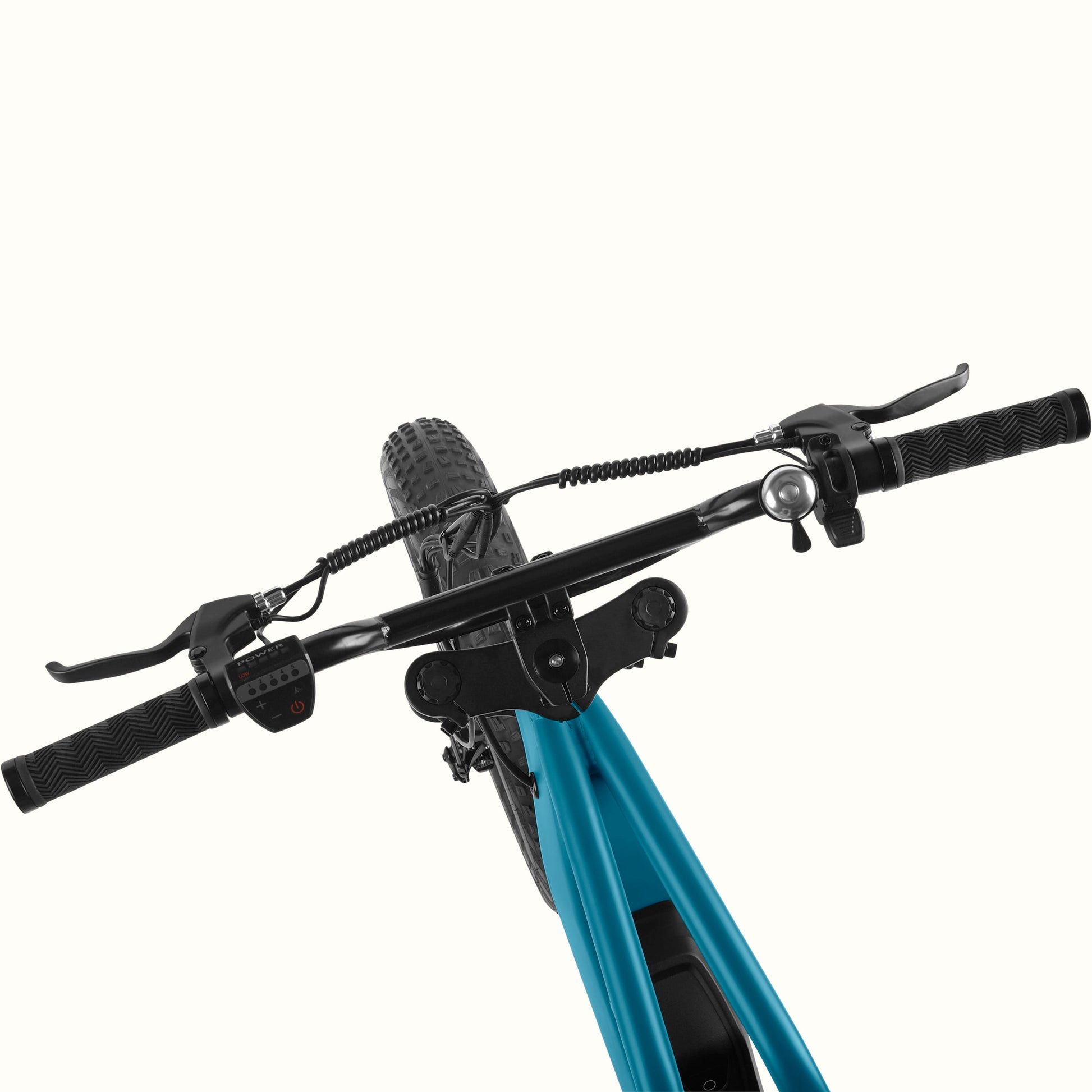

• Display: Left mounted color LED
• Charger: 48V/2A
• 48V/750W range: Up to 49 miles
• Assist Levels: 1-5 PAS, Throttle and walk-mode

DRIVETRAIN

• Crankset: 3-Piece aluminum w/steel 38T chainrings with double alloy chainguard

• Chain: KMC SIngle Speed
• BB: Sealed cartridge
• Freewheel/Cog: Single Speed 18T

COMPONENTS

Headset: 1-1/8” semi-integrated threadedless

Brakes:

• Tektro mechanical with 180mm rotors and semi-metalic pads

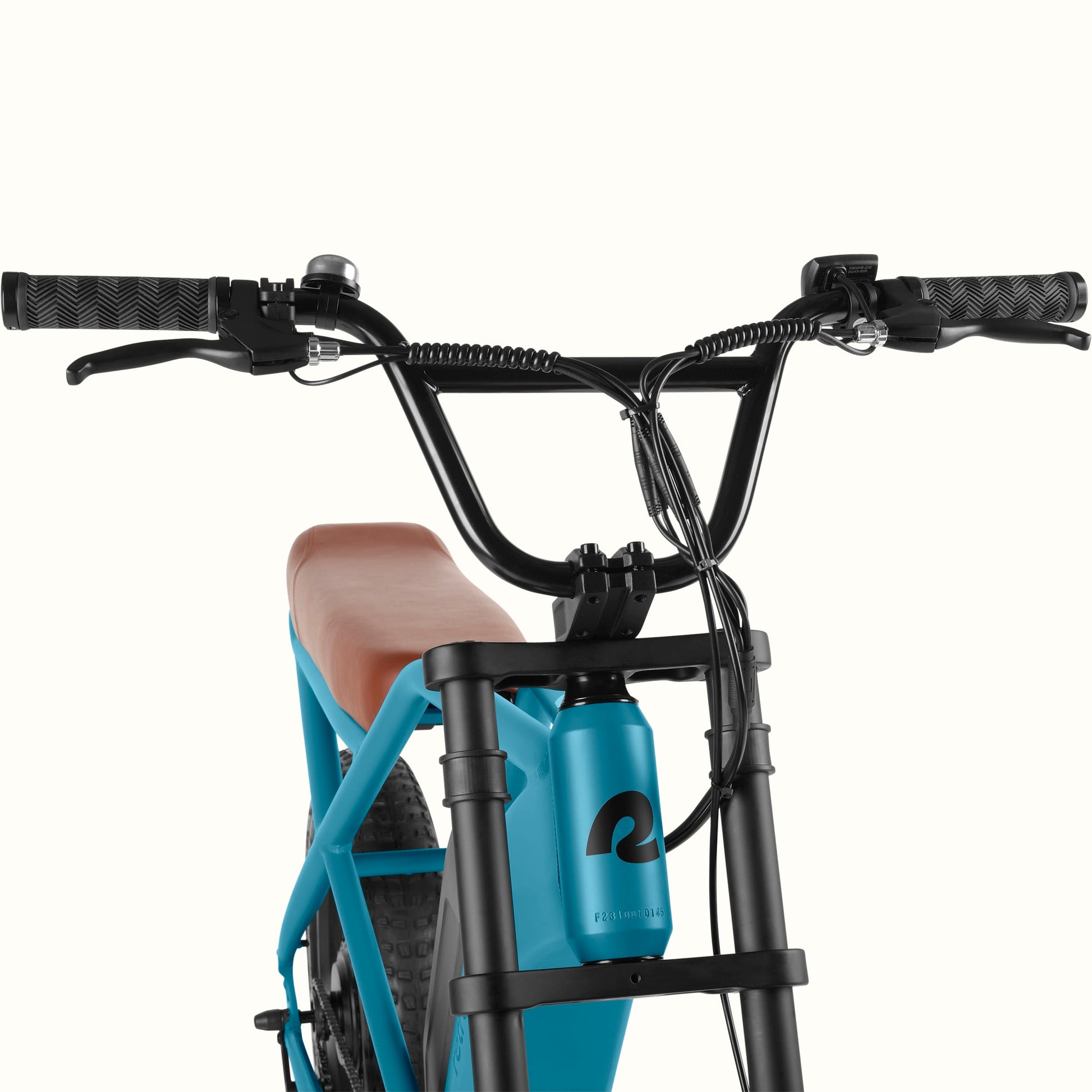

• Handlebars: Steel BMX
• Grips: Lock-on comfort grips.
• Stem: BMX Die Cast Alloy 22.2mm clamp
• Saddle: Retrospec Custom Moto
• Pedals: PP plateform with non-slip tread

EXTRAS

• Kickstand: Aluminum chainstay mounted, 40MM bolt pattern
• Accessories: tool kit
• Recommended Weight Limit: 350lbs
• Item Weight: 72 lbs (battery included)

What our Experts Think

• High-performance fat tire e-bike built around a 750W rear hub motor for strong acceleration and confident hill climbing.
• Up to ~49 miles of range per charge, making it suitable for commuting, errands, and weekend exploration.
• 20” x 4” puncture-protected fat tires deliver excellent stability on pavement, gravel, sand, and light trails.
• Moto-style frame design with step-over geometry, giving a more aggressive, stable riding stance compared to cruiser e-bikes.
• Multiple ride modes (throttle + pedal assist levels) let riders choose between relaxed cruising or active pedaling.
• Comfort-focused saddle and high payload capacity (~350 lbs) support a wide range of rider sizes and use cases.
• Mechanical disc brakes provide reliable stopping power, even at higher speeds or on mixed terrain.
• Single-speed drivetrain keeps maintenance low, ideal for riders who want simplicity over complex gearing.
• Built for versatility, equally at home on city streets, beach paths, and light off-road routes.
• Best suited for riders wanting power + stability + rugged styling, rather than a lightweight commuter or fitness bike.


Q&A

Q: What is the Retrospec Valen Rev 2 Fat Tire Electric Bike designed for?
A: A fat tire electric bike built for stable, comfortable riding across city streets, rough paths, and mixed terrain.

Q: What are the benefits of fat tires?
A: They improve grip, balance, and shock absorption for smoother rides on gravel, sand, and uneven roads.

Q: Is it suitable for commuting?
A: Yes. Electric assist helps reduce effort on daily commutes, hills, and longer rides.

Q: Is this bike beginner-friendly?
A: Yes. Its stable frame design and pedal-assist system make it easy to control and ride confidently.

Q: What type of terrain can it handle?
A: It’s designed for urban roads, bike paths, light trails, and variable outdoor surfaces.

Q: Why choose the Valen Rev 2 over a standard bike?
A: It combines electric power with fat tire stability, offering more comfort and versatility than traditional bicycles.

Maintenance Tips

• Maintain correct fat tire pressure for optimal range, traction, and motor efficiency.
• Charge battery regularly; avoid full depletion and store at 40–70% charge when not in use.
• Keep motor, display, and battery area dry—avoid pressure washing or direct water spray.
• Clean frame and drivetrain after rides, especially in sand, mud, or wet conditions.
• Lubricate the chain and drivetrain frequently to handle e-bike torque and reduce wear.
• Inspect and tighten bolts, rack mounts, and folding/frame joints for safety.
• Check brake pads and rotor condition often for consistent stopping power.
• Monitor wheel alignment and spoke tension after off-road or rough terrain use.
• Ensure electrical connectors are clean, secure, and corrosion-free.
• Schedule a professional e-bike tune-up every 6–12 months.
