VENTAHOOD 48" Wall Mounted Euro Style Range Hood - PDH14248

VENTAHOOD 48" Wall Mounted Euro Style Range Hood - PDH14248

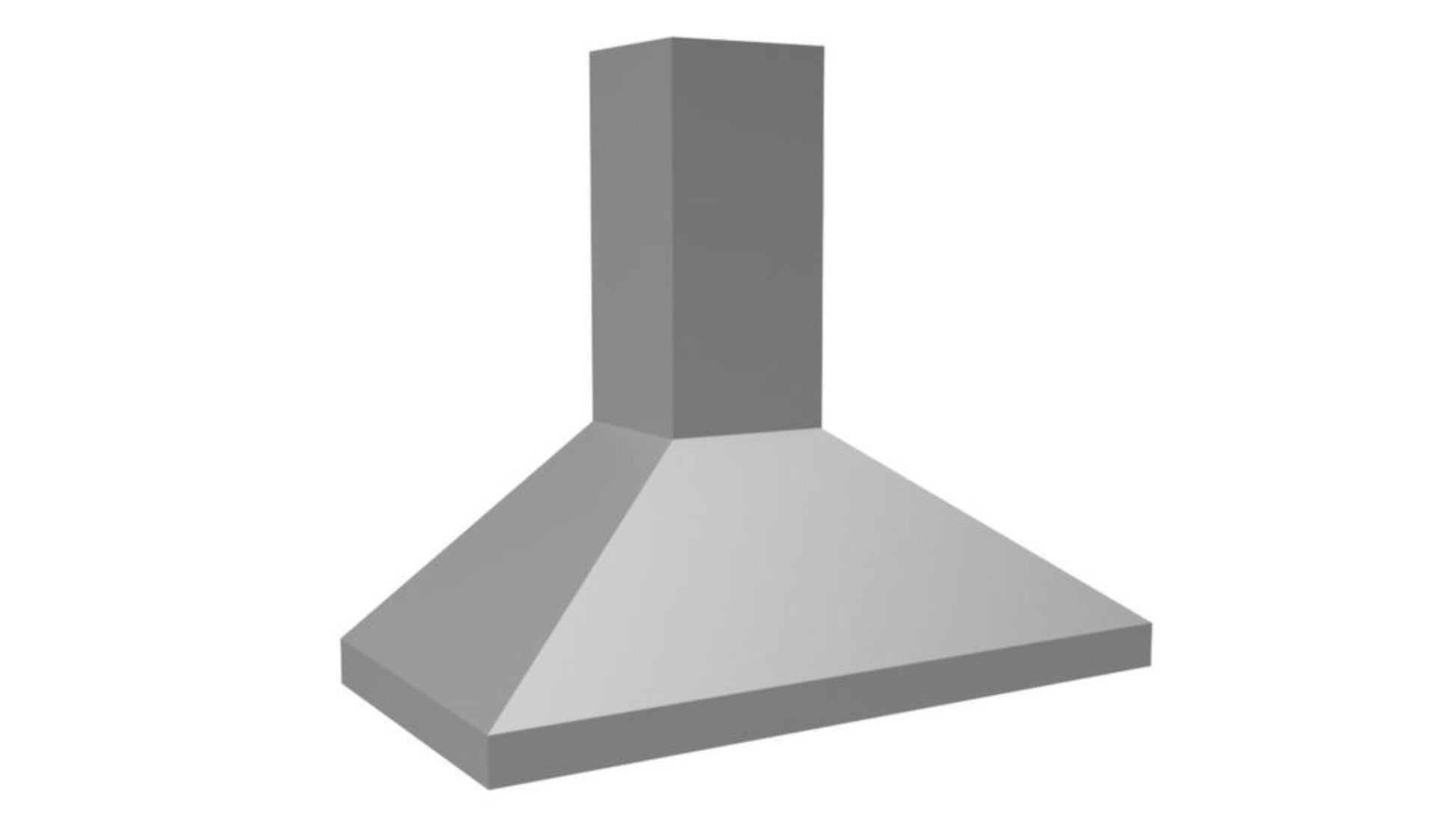

This Euroline Series with squared lip is a versatile European style hood that can stand alone or be installed between cabinets. Heat lamps are not available on this model. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. Recommended mounting height is 24" from the cooking surface. Shown with matching wall mount duct cover [sold separately], available in standard sizes for 7', 8', and 9' ceiling heights or in custom sizes. All Vent-A-Hood products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit.

What our Experts Think

• Balanced ventilation for everyday to heavy kitchen use — 600 CFM blower with dual motor delivers strong extraction for smoke, steam, and odors; equivalent performance can reach up to ~900 CFM at 0 SP.

• Contemporary Euro‑style design — clean, squared canopy profile enhances modern kitchens and works well as a standalone hood or between cabinets.

• Solid build and dimensions — 48″ width, 14″ height, and 21″ depth provide substantial coverage without dominating the wall space.

• Effective noise management — runs around ~6.5 sones at high speed—balanced for this performance class.

• Good lighting and visibility — three integrated lights illuminate the cooking surface for precision cooking.

• Ducted installation ready — requires a minimum 8″ round duct for optimum airflow to the outdoors; recommended mounting is ~24″ above the cooktop.

• Easy maintenance — Magic Lung centrifugal blower design avoids conventional filters, simplifying grease handling and cleaning.

Q&A

Q: What type of range hood is the Ventahood PDH14248?
A: It’s a 48″ wall‑mounted Euro style ducted range hood designed to deliver efficient ventilation for residential kitchens with a contemporary European profile.

Q: What ventilation performance does this model offer?
A: Equipped with a dual B200 blower, it provides about 600 CFM airflow (approximately 900 equivalent CFM), effectively removing smoke, grease, and odors while cooking.

Q: What are the key dimensions?
A: Width: 48″ • Height: 14″ • Depth: 21″ — sized to cover larger cooktops and ranges.

Q: How many lights and what sound level does it have?
A: Includes 3 built‑in lights to illuminate the cooktop and runs at about 6.5 sones on high.

Q: What duct size and installation recommendations apply?
A: A minimum 8″ round duct (50 sq. in.) is recommended for optimal airflow. Recommended mounting height is about 24″ above the cooking surface.

Q: Does this model support outdoor or damp locations?
A: Yes — like other Ventahood products, it is suitable for use in damp locations (such as a covered patio) when installed on a GFCI‑protected branch circuit.

Q: What design and finish options are available?
A: The Euro style hood blends seamlessly with modern kitchens and can be specified in painted, stainless steel, real brass, real copper, or hammered copper finishes (finish availability may vary).

Q: Are heat lamps included?
A: No — heat lamps are not available on this model

Maintenance Tips

• Exterior Cleaning Weekly – Wipe the stainless‑steel surfaces with warm, soapy water and a soft cloth; avoid steel wool, abrasive pads, or harsh chemicals to protect the finish and prevent scratches.

• Interior Grease Wipe‑Down – Regularly clean the interior canopy to remove cooking oil and grease buildup that can reduce airflow and efficiency. Use a mild degreaser or dish soap while the power is off.

• Grease Capture / Filter Care – If your unit includes grease filters or baffle filters, remove and wash them periodically in warm, soapy water or a dishwasher (follow manual instructions). Cleaning frequency depends on cooking habits.

• Blower & Fan Inspection – Inspect and wipe down the blower housing and fan area occasionally to prevent grease accumulation that can affect performance; ensure power is off before accessing internal components.

• Light Bulb Maintenance – Turn off power and let bulbs cool before replacing; clean light covers to ensure good illumination over the cooktop.

• Post‑Cooking Ventilation – After heavy cooking, run the hood a few extra minutes to clear residual steam, smoke, and odors before cleaning.

• Professional Service When Needed – If airflow weakens significantly, unusual noises occur, or the blower seems clogged with grease, have a qualified technician inspect and service the unit safely.
