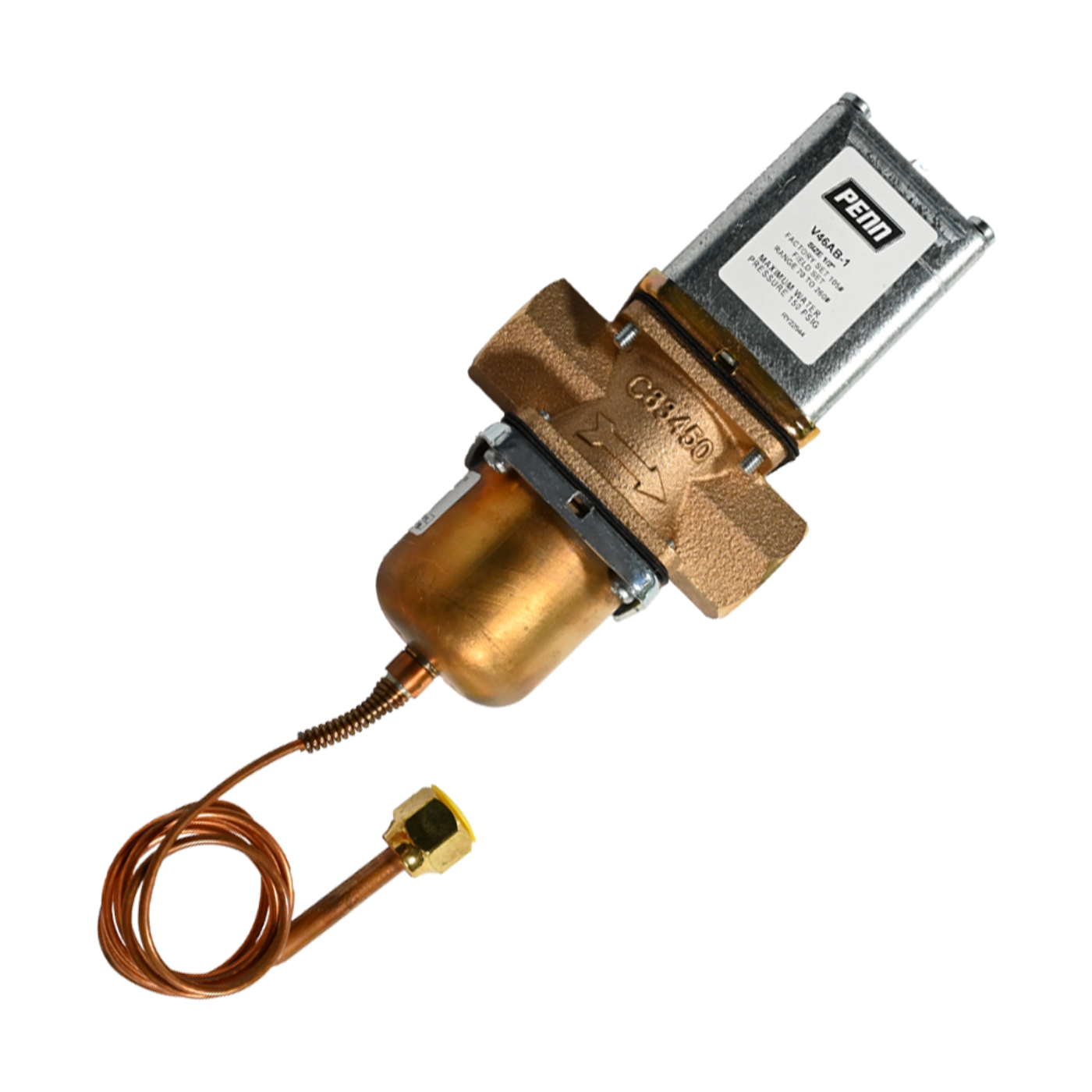

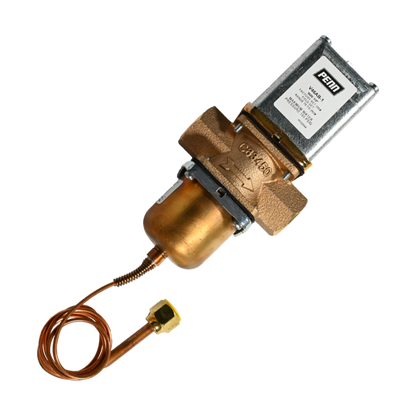

Wine Guardian Water Regulating Valve - 1779459251894_200
Water regulating valve used in all water-cooled units.
What our Experts Think
- The Wine Guardian Water Regulating Valve is a pressure-actuated flow control valve used in water-cooled wine cellar cooling systems to regulate condenser water flow and maintain proper refrigerant head pressure
- Its main job is to modulate incoming water based on system demand, ensuring the cooling unit maintains stable operating pressure and efficient heat rejection during cycles
- Commonly used in water-cooled configurations of Wine Guardian ducted systems, where heat is transferred into a water source (e.g., geothermal loop, cooling tower, or lake water) instead of air
- The valve automatically reduces or shuts off water flow when cellar temperature is satisfied, preventing unnecessary water usage and stabilizing system operation
- Works by responding to refrigerant head pressure changes, opening or closing to keep the system within optimal performance range for consistent wine cellar cooling
- Designed for precision balancing between condenser load and available water pressure, which is critical for preventing overpressure, freezing issues, or inefficient cooling cycles
- Typically installed on the water inlet side of the condenser coil, and must be correctly sized for system tonnage and flow requirements
- Requires professional HVAC installation and tuning, since incorrect adjustment can lead to unstable head pressure, poor cooling performance, or compressor stress
- Includes serviceability features such as adjustable setpoints and internal access for maintenance or flushing in demanding water conditions
Q&A
Q: What is the Wine Guardian Water Regulating Valve used for?
A: It is a pressure-actuated control valve used in water-cooled Wine Guardian wine cellar cooling systems to regulate the flow of cooling water through the condenser, ensuring stable system pressure and efficient heat rejection.
Q: How does the water regulating valve work?
A: The valve automatically opens or closes based on refrigerant head pressure. When pressure rises, it opens to allow more cooling water through the condenser; when pressure drops, it restricts flow to maintain optimal operating conditions.
Q: Where is this valve used in Wine Guardian systems?
A: It is used in water-cooled Wine Guardian ducted systems that rely on external water sources like cooling towers, geothermal loops, or lake water instead of air-cooled condensers.
Q: Why is the water regulating valve important?
A: It maintains correct condenser pressure, prevents overheating or undercooling, and ensures the wine cellar cooling system runs efficiently and safely under varying water supply conditions.
Q: What problems can a faulty water regulating valve cause?
A: It can lead to unstable cooling performance, high head pressure shutdowns, poor temperature control, or reduced system efficiency in the wine cellar.
Q: Does this valve require manual adjustment?
A: Typically no. It is factory-set to respond automatically, though some systems may allow limited adjustment or servicing by HVAC technicians.
Q: Who should install or replace it?
A: A qualified HVAC or refrigeration technician should handle installation or replacement due to refrigerant-side system integration and calibration requirements.
Maintenance Tips
- Inspect valve body regularly for leaks, corrosion, or mineral buildup that can restrict water flow
- Flush water lines periodically to prevent sediment and scale accumulation that affects valve response
- Ensure inlet water is filtered to reduce debris entering the regulating valve
- Check capillary tube for kinks, cracks, or vibration damage that can disrupt pressure sensing
- Verify proper vertical installation to maintain accurate pressure modulation performance
- Clean surrounding condenser water circuit to maintain stable head pressure control
- Test valve response seasonally to ensure smooth opening/closing under load changes
- Avoid chemical exposure that can degrade valve seals or internal components
- Confirm correct water pressure range to prevent valve hunting or instability
- Schedule periodic HVAC servicing for calibration and full system water-side inspection
