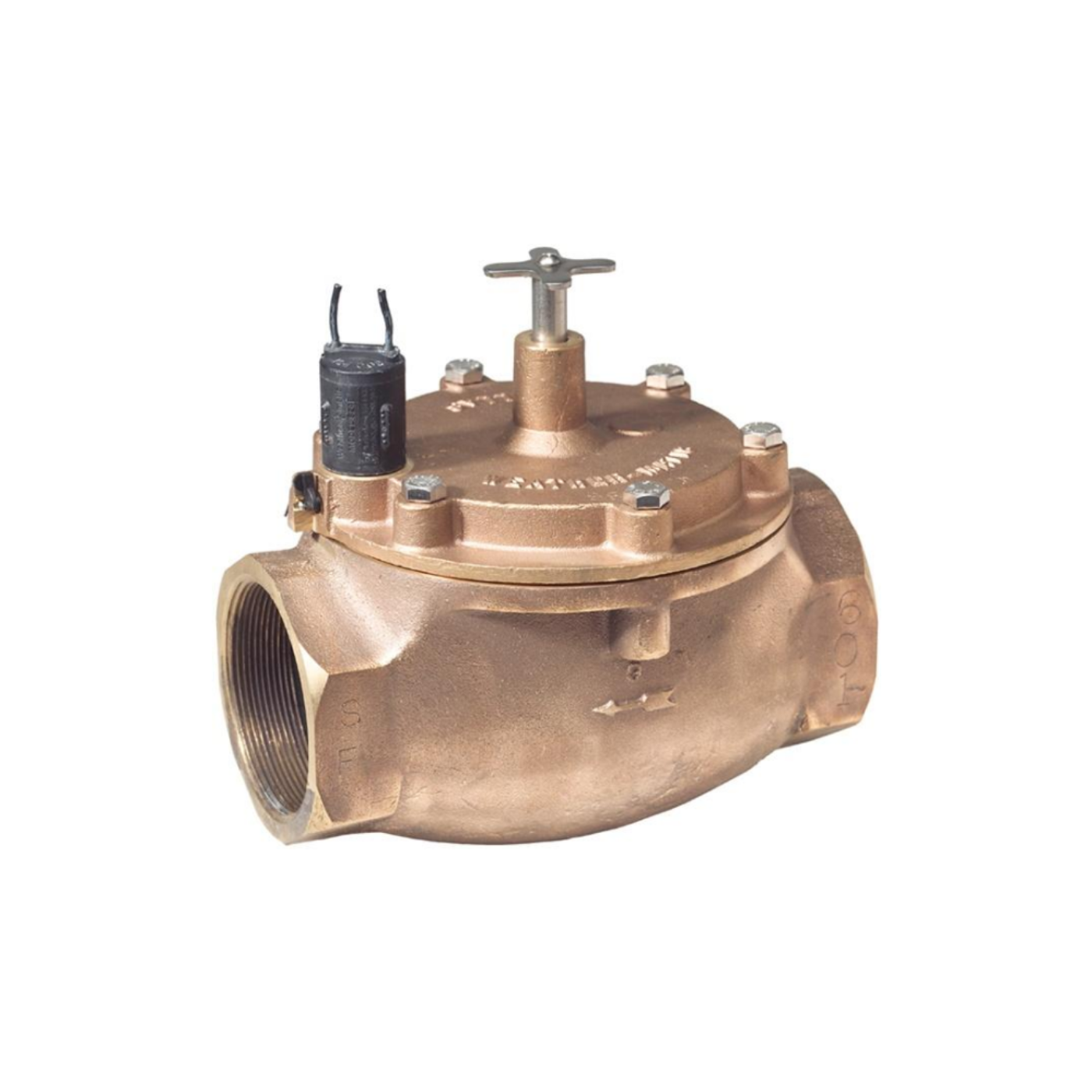

Zurn Weathermatic 8200CR-15D Bronze Bullet Valve 1-1/2" - 8200CR-15D
The Weathermatic 8200CR-15D is a 1-1/2" bronze bullet irrigation valve designed for reliable, long-life service in commercial and residential systems. Built with a reverse-flow diaphragm design and heavy-duty components, it closes on diaphragm failure to conserve water and resists contamination for consistent operation.
Ideal for irrigation contractors and landscape professionals who need a durable, low-maintenance control valve. Use with a 24VAC controller and follow the supplied installation and technical specifications for correct wiring, mounting depth, and optional XPR pressure-regulating modules. Download the manufacturer spec sheet and installation guide for parts, dimensions, and service information.
Features
-
Robust bronze construction: Bronze body and cover with stainless steel cover bolts and brass mating inserts for corrosion resistance.
-
Proven performance: 225 PSI (15.5 BAR) rating, 100% water tested and backed by a 10-year trade warranty.
-
Contamination-resistant design (CR): Chlorine- and chloramine-resistant EPDM diaphragm with self-cleaning ports to reduce debris-related failures.
-
Reliable solenoid operation: S24B high-efficiency solenoid (24VAC) with stainless steel actuator and brass threads for positive opening at high pressures; inrush/holding values per manufacturer.
-
Flow & control: Internal manual bleed and brass non-rising flow control stem for field throttling; flow range 0.2–400 GPM (0–90 m3/hr).
-
Compact dimensions: 5.06" L × 4.00" W × 5.75" H (1-1/2" model) for easy vault or direct-bury installation.
What our Experts Think
-
Heavy-duty bronze construction: Cast bronze body and cover with stainless steel hardware deliver strong corrosion resistance and long service life.
-
Reliable 24VAC solenoid control: Designed for automated irrigation systems, providing consistent on/off operation through standard controllers.
-
High pressure rating (225 PSI): Built to handle demanding water systems while maintaining stable performance.
-
Reverse-flow safety design: If diaphragm failure occurs, the valve fails closed to reduce water waste and system damage risk.
-
Self-cleaning diaphragm system: Flexible ports help reduce clogging from sand and debris, improving long-term reliability.
-
Manual bleed + flow control: Built-in manual override and adjustable flow control allow fast field adjustments and easier maintenance.
-
Irrigation-focused performance range: Designed for low-to-medium flow applications up to commercial-scale landscape zones.
Q&A
Q: What is the Zurn Weathermatic 8200CR-15D used for?
A: A 1-1/2" professional-grade electric irrigation control valve used in commercial and residential landscape watering systems to regulate water flow from a controller.
Q: What type of valve is it?
A: A bronze solenoid-operated diaphragm valve (normally closed) designed for reliable automatic irrigation zone control.
Q: What makes the “Bronze Bullet” design different?
A: It uses a reverse-flow diaphragm system that closes on failure, reducing water waste and improving system safety.
Q: What are its key durability features?
A: Bronze body and cover, stainless steel bolts, and a chlorine/chloramine-resistant EPDM diaphragm for long service life in harsh water conditions.
Q: What pressure and performance rating does it have?
A: Rated up to 225 PSI with a wide flow range (low flow to high irrigation demand applications).
Q: Does it support manual operation?
A: Yes. It includes an internal manual bleed lever for quick zone testing and servicing.
Q: Where is it typically used?
A: Golf courses, parks, commercial landscapes, and residential irrigation systems requiring durable, high-reliability zone control.
