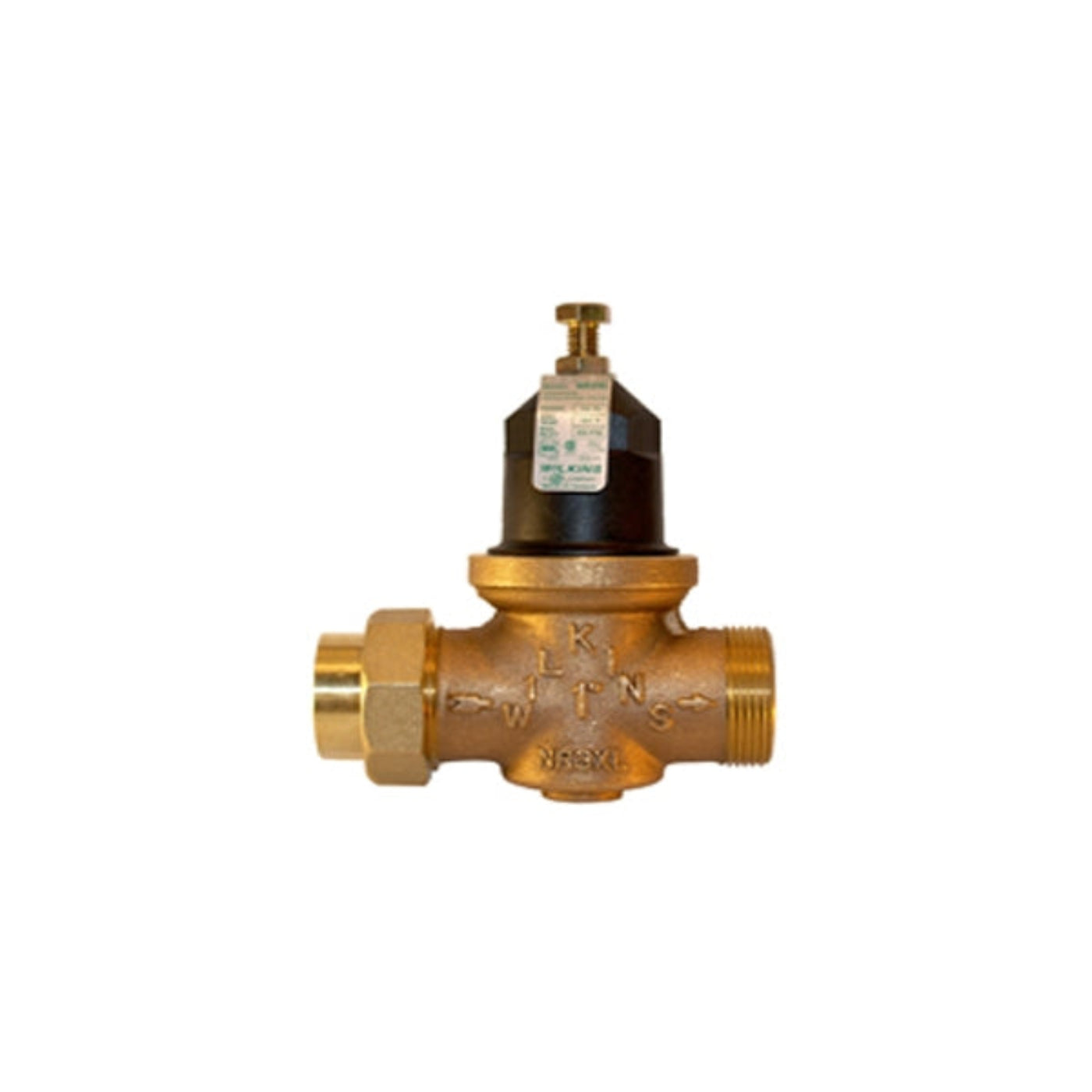

Zurn Wilkins NR3XL 1-inch Pressure Reducing Valve, FNPT Union - 1-NR3XL
Wilkins NR3XL 1-inch pressure reducing valve provides reliable downstream pressure control for residential water systems. Lead-free construction and an integral strainer protect plumbing fixtures while a compact, cartridge-loaded design simplifies service and replacement.
Includes specification and installation documents for sizing and maintenance. Compatible with potable water systems; suitable where lead-free components are required. See product literature for dimensions, end-style options, and parts list.
Features
- Lead-free, cast bronze body with corrosion-resistant composite bell housing.
- Integral bypass check valve and stainless steel strainer for debris protection.
- Cartridge-loaded, serviceable design with short lay length for tight installations.
- Factory preset to 50 psi; adjustable range 15-75 psi for 1-inch models.
- Maximum working pressure up to 400 psi; temperature rating to 140 F.
- Brass stem, 302 stainless steel spring trim, Buna-N/EPDM elastomers.
What our Experts Think
-
Maintains safe, consistent water pressure: The Zurn Wilkins NR3XL 1" Pressure Reducing Valve protects plumbing systems, fixtures, and appliances by reducing high inlet pressure to a stable downstream pressure.
-
Ideal for residential and light commercial systems: Featuring a single union FNPT connection, this 1-inch model offers straightforward installation and simplified servicing for potable water applications.
-
Easy to maintain: A replaceable cartridge, threaded composite bell housing, and integral stainless steel strainer allow fast cleaning and repairs while helping prevent sediment buildup.
-
Lead-free and code compliant: Constructed with a lead-free cast bronze body, the valve meets major industry standards, including NSF/ANSI/CAN 61, ASSE 1003, CSA, and cUPC requirements.
-
Helps reduce water waste: Proper pressure regulation can lower water consumption by up to 25% when reducing pressure from 100 PSI to 50 PSI, making it a smart investment for efficiency and long-term savings.
Q&A
Q: What is the Zurn Wilkins 1-NR3XL 1" Pressure Reducing Valve?
A: The Zurn Wilkins 1-NR3XL is a 1-inch lead-free pressure reducing valve with a single FNPT union, designed to regulate high incoming water pressure and protect residential and commercial plumbing systems.
Q: What applications is the 1-NR3XL best suited for?
A: It is ideal for potable water systems in homes, apartments, light commercial buildings, irrigation systems, and public water service entrances requiring consistent water pressure.
Q: What are the key features of the Zurn Wilkins 1-NR3XL?
A: It features a lead-free cast bronze body, corrosion-resistant composite bell housing, stainless steel integral strainer, replaceable cartridge, single FNPT union connection, and an integral bypass to help manage thermal expansion.
Q: What pressure range does the 1-NR3XL support?
A: The valve is factory preset to 50 PSI and is adjustable from 15 to 75 PSI for precise water pressure control.
Maintenance Tips
- Inspect the valve annually and verify downstream pressure to ensure accurate pressure regulation and reliable operation.
- Check regularly for leaks, pressure fluctuations, or pressure creep, and clean the internal cartridge and strainer if sediment or debris is present.
- Flush the water line before servicing and keep the integral strainer clean to maintain consistent flow and performance.
- Adjust the pressure only with a downstream pressure gauge, following the manufacturer's recommended pressure range.
- Replace worn cartridges, seals, and internal components using genuine Zurn Wilkins repair kits to maintain long-term reliability.
- After maintenance, confirm the pressure setting and inspect all connections for leaks before returning the valve to service.
