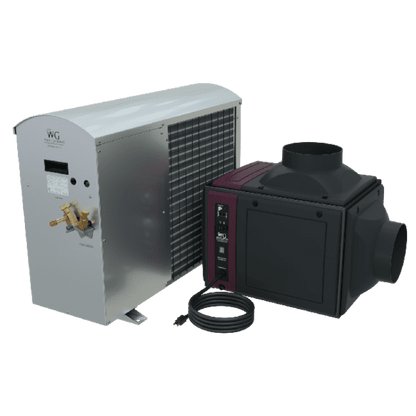

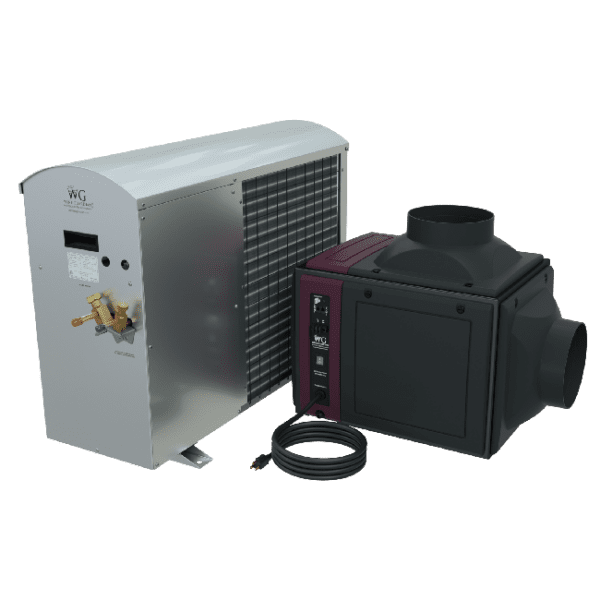

The Wine Guardian DS025 is a professional ducted split wine cellar cooling system designed for small to medium wine rooms from 250 to 2,000 cubic feet. With a cooling capacity range of 1,000 to 3,485 BTU/h, concealed ducted installation, remote condenser placement, and professional-grade temperature control, the DS025 is ideal for residential wine cellars, restaurant wine rooms, hospitality spaces, and custom wine storage projects where quiet operation and clean cellar aesthetics matter.
Designed for wine cellars from 250 to 2,000 cu. ft.
Cooling capacity range of 1,000 to 3,485 BTU/h
Ducted split design keeps major cooling equipment out of the wine room
Remote condenser placement helps reduce noise and vibration near the cellar
Compatible with Wine Guardian humidifier, ducting, control, and warranty options
Important Installation Note
The Wine Guardian DS025 is a professional wine cellar cooling system and must be installed by a qualified contractor. This is not a DIY plug-in wine cooler. The DS025 is a 60 Hz system commonly used in most of North America, including the United States and Canada.
Quick Product Summary
The Wine Guardian DS025 is best for wine cellar projects that require quiet performance, hidden equipment placement, and dependable climate control for a properly insulated wine room. Its ducted split configuration separates the fan-coil and condenser sections, allowing the condenser to be installed away from the wine cellar while conditioned air is delivered through ductwork.
This makes the DS025 a strong choice for homeowners, serious wine collectors, custom builders, designers, restaurants, and hospitality professionals who want a clean cellar appearance without placing large mechanical equipment inside the wine room.
Product Snapshot
Product
Wine Guardian DS025 Ducted Split Wine Cellar Cooling Unit
Restaurants, hospitality spaces, and commercial wine rooms
Projects requiring quiet operation inside the wine room
Installations where the cooling equipment should remain hidden from view
Not Recommended For
DIY installations without a qualified HVAC or refrigeration contractor
Wine cabinets or small plug-in wine refrigerator applications
Wine rooms larger than 2,000 cu. ft. without professional sizing confirmation
Projects without a suitable condenser location
Buyers seeking the simplest self-contained installation
Budget-limited projects where installation cost is the primary concern
What the Wine Guardian DS025 Does
The Wine Guardian DS025 helps maintain stable wine cellar conditions by cooling and circulating air through a ducted split system. The fan-coil section conditions the wine room, while the condenser section can be installed remotely. This allows the cooling system to operate behind the scenes while preserving the design and usability of the wine cellar.
For wine storage, temperature control alone is not always enough. Proper wine cellar humidity helps protect corks, labels, and long-term bottle condition. Wine Guardian humidifier options are available for projects that require added humidity support.
Ideal Applications
Residential Wine Cellars
The DS025 is ideal for homeowners building or upgrading a dedicated wine cellar where quiet operation, concealed equipment, and reliable temperature control are priorities.
Serious Wine Collectors
For collectors storing valuable bottles over time, the DS025 provides professional-grade climate control with remote condenser placement to help reduce vibration and noise near the wine collection.
Luxury Home Designers
The ducted split configuration supports premium cellar aesthetics by allowing visible wine displays, glass rooms, and custom millwork to remain the focus of the space.
Custom Builder Specialists
Builders can use the DS025 in custom cellar projects that require coordinated ducting, mechanical planning, and clean integration with the surrounding home design.
Restaurant Wine Rooms
The DS025 can support restaurant wine storage where consistent temperature control and guest-facing aesthetics are important.
Hospitality Venues
Hotels, clubs, tasting rooms, and hospitality spaces can use the DS025 for small to medium wine rooms where the cooling system should stay discreet.
Installation Requirements
The Wine Guardian DS025 requires professional installation. Because this is a ducted split system, proper sizing, condenser placement, duct routing, electrical service, and system commissioning are essential for reliable performance.
Qualified Contractor Required
A qualified contractor must install the DS025. This system is not designed for DIY installation or simple plug-in replacement.

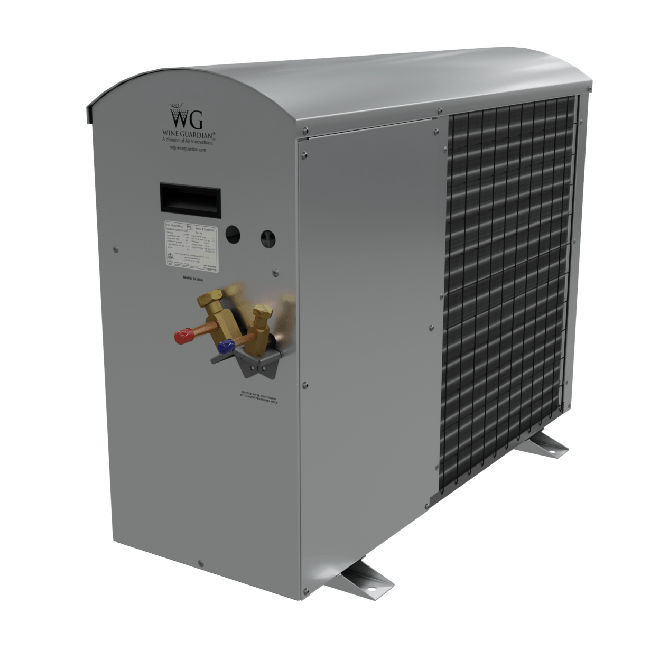

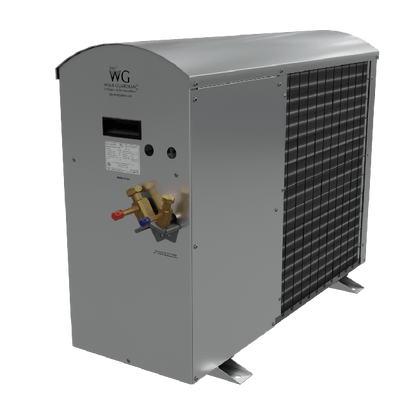

Remote Condenser Placement
The condenser section can be placed away from the wine room, helping reduce noise and vibration near the cellar while supporting flexible mechanical design.
Ducting Requirements
Proper supply and return ducting are important for airflow, temperature consistency, and system efficiency.
Electrical Requirements
The fan-coil requires 115/1/60 electrical service. The condenser requires 208-230/1/60 electrical service.
Key Benefits of the Wine Guardian DS025
Behind-the-Scenes Control
The DS025 helps preserve the beauty of the wine cellar by keeping major mechanical equipment away from the main wine storage or display area.
Quiet Wine Cellar Environment
Remote condenser placement helps reduce the operating noise and vibration commonly associated with cooling equipment located directly inside or beside the cellar.
Flexible Ducted Installation
The ducted split design provides installation flexibility for cellars with limited mechanical room space, difficult condenser exhaust, or longer duct run requirements.
Remote Monitoring and Control
Wine Guardian control options allow convenient temperature and humidity monitoring from inside or outside the wine room.
Fully Serviceable System
Removable panels, front-facing controls, and condenser service access help qualified technicians service the system in the field.
Sentinel Series Construction
The DS025 is part of the Wine Guardian Sentinel Series, which features updated composite material for strength, performance, efficiency, and appearance.
Advantages
Concealed cooling design for premium wine cellar aesthetics
Remote condenser placement helps reduce cellar noise and vibration
Flexible ducting options for custom wine room layouts
Suitable for residential and light commercial wine storage
Compatible with Wine Guardian humidifier and control options
Serviceable design supports long-term maintenance
Useful for projects where a self-contained unit would be too visible or noisy
Limitations
Professional installation is required
Installation is more complex than self-contained wine cellar cooling units
Requires suitable condenser location and duct planning
Not appropriate for simple plug-in wine refrigerator replacement
Cellar sizing should be verified before purchase, especially near the upper capacity range
Additional accessories may be required depending on the installation layout
Fan-Coil and Condensing Options

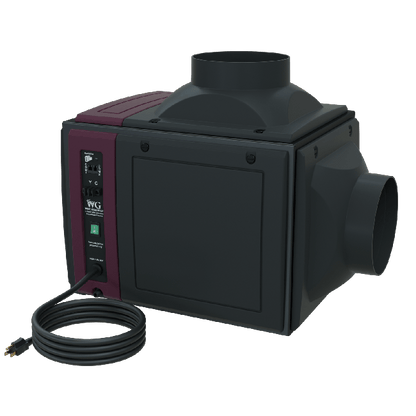

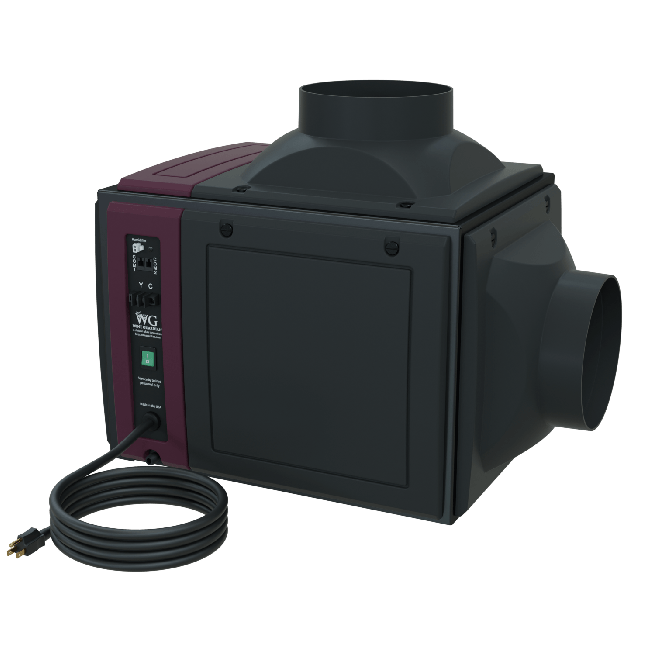

Standard Fan-Coil
Base model with coated evaporator coil.
Standard with All Wine Temperatures (AWT)
Includes a factory-mounted heater and extended controls to adjust the wine room to serving temperatures. This bundle supports a wider temperature range from 45°F / 7°C to 64°F / 18°C and is useful for cellars where temperatures may drop below 50°F / 10°C.
Standard Condensing Option
Base model with Low Ambient Protection to help protect the system from cold temperatures below 5°C / 40°F.
Extreme Climate Protection
Protects the condenser section only in extreme climate conditions. This option is intended for climates where temperatures drop below 20°F and allows the system to operate in temperatures as low as -20°F.
Technical Specifications
Model
DS025
Line Frequency
60 Hz
Capacity
1,000 - 3,485 BTU/h
Recommended Volume
250 - 2,000 ft³
Fan-Coil Length
21.43"
Fan-Coil Width
16.6"
Fan-Coil Height
15.56"
Fan-Coil Weight
35 lbs
Fan-Coil Electrical
115/1/60
Condenser Length
34"
Condenser Width
12.3"
Condenser Height
26.07"
Condenser Weight
75 lbs
Condenser Electrical
208-230/1/60
Compare Wine Guardian Ducted Split Models
The DS025 is the smallest listed model in this Wine Guardian ducted split lineup and is best for small to medium wine cellars. For larger spaces, compare it with the DS050, DS088, and DS200.
Model
Recommended Cellar Volume
Best For
DS025
250 - 2,000 cu. ft.
Small to medium residential or commercial wine rooms
Enhance the Wine Guardian DS025 with compatible accessories designed to support airflow, controls, humidity management, installation flexibility, and long-term protection.
Ducting Options
Duct Collar - Return - Inlet
The Duct Collar Return Inlet pulls air from the wine room and returns it to the wine cellar cooling system.
Duct Collar - Supply - Outlet
The Duct Collar Supply Outlet pushes conditioned air into the wine room from the wine cooling unit.
Combo Duct Kit - Supply, Return and Flex Duct
This Combo Duct Collar Kit includes one duct collar supply outlet, one duct collar return inlet, and one flex duct.
Flexible Ductwork 8" Round
This option includes one box of 25 ft. / 7.6 m insulated flexible ductwork for Sentinel Series systems D025, DP25, DS025, and SP25.
Control Options
Remote Interface
The Wine Guardian Remote Interface Controller includes thermostat, humidistat, and monitoring controls. It can be placed inside or outside the wine room with the use of a remote sensor.
Remote Sensor
The Wine Guardian Remote Sensor detects temperature and humidity in the wine cellar. It is especially useful for large rooms, multiple rooms controlled by one Wine Guardian cooling system, or when averaging conditions across different areas of the cellar. Each sensor includes 50 feet of cable.
Humidifier Options
Integrated Humidifier
The Wine Guardian Integrated Humidifier attaches directly to the Wine Guardian cooling system and uses the same power source and remote controller.
Standalone Humidifier - Through the Wall / Powered by Cooling Unit
This Wine Guardian Freestanding Humidifier includes a power-control cable to connect to the Wine Guardian cooling system and a wall-mount bracket for placement flexibility.
Standalone Humidifier - Through the Wall / Independent Power
This Wine Guardian Freestanding Humidifier includes a wall-mount bracket, power cord, and humidistat for use in wine cellars with independent power requirements.
3 Years Extended Warranty: Extends the warranty period for the compressor, evaporator coil, and condenser coil for parts only by three years.
Product Images and Feature Highlights
Behind-the-Scenes Control
The ducted split system is designed to protect the wine collection while preserving the appearance of the wine cellar.
Engineered for Maximum Flexibility
Ducted split systems can support installations with limited mechanical room space, challenging condenser air exhaust, or long duct runs.
Evaporator and Condenser Designed Together
Wine Guardian designs the evaporator and condenser sections to work together as a matched ducted split cooling system.
Installation Efficiency
The DS025 uses a ducted split design familiar to qualified contractors who install HVAC and refrigeration systems.
Cellar Monitoring and Control
Wine Guardian control options support temperature and humidity monitoring from a convenient location inside or outside the wine room.
Remote Interface Controller
The controller allows convenient access to cellar temperature and humidity information.
Fully Serviceable System
Removable panels, front-facing controls, and condenser service access help support field serviceability.
Sentinel Series Construction
The Sentinel Series features updated composite construction designed for strength, efficiency, and appearance.
Manuals, Downloads and Technical Files
Review the official Wine Guardian product documents before installation planning. These resources are useful for homeowners, designers, builders, contractors, and wine cellar planning teams.
Wine Guardian warrants, to the original buyer, its goods and all parts thereof to be free from defects in material and workmanship for a period of two years from the date of invoicing, assuming normal use and service.
Product Videos
Wine Guardian Ducted Split Wine Cooling Systems
Wine Guardian Ducted Split Wine Cellar Cooling Unit - Features and Benefits | Sentinel Series
Wine Guardian Sentinel Series Wine Cellar Cooling Units
Wine Guardian Sentinel Series | Izod Strength Test
Wine Guardian Sentinel Series | Hammer Test
Related Wine Cellar Cooling Resources
Learn more about Wine Guardian systems, wine cellar humidity, cooling system comparisons, and how to choose the right wine cellar cooling solution.
Wine Coolers Empire is a trusted dealer of premium wine cellar refrigeration units, commercial wine cellar cooling units, residential wine cellar coolers, and wine room humidifiers. More Wine Guardian reviews can be found on our Customer Reviews page.
For questions about product selection, order processing, shipping options, and delivery times, visit our Shipping Policy or Contact Us page.
WCE Expert Recommendation
The Wine Guardian DS025 is best for collectors, designers, builders, restaurants, and hospitality professionals who need a quiet, concealed, professionally installed wine cellar cooling solution for a room between 250 and 2,000 cubic feet. Choose this model when aesthetics, remote condenser placement, and stable wine storage conditions are more important than lowest-cost installation.
Need Help Sizing Your Wine Cellar Cooling System?
Choosing the wrong cooling unit can lead to poor performance, short cycling, humidity problems, or unnecessary installation costs. Wine Coolers Empire can help you choose the best-suited wine cooling system for your cellar size, layout, and project requirements.
Talk to an expert at +1-888-407-7770 or email support@winecoolersempire.com for assistance.
Buy the Wine Guardian DS025 Ducted Split Wine Cellar Cooling Unit - 60 Hz if you need a professional, discreet, and flexible cooling system for a small to medium wine cellar. For larger spaces, compare the DS025 with the DS050, DS088, and DS200 before ordering.
