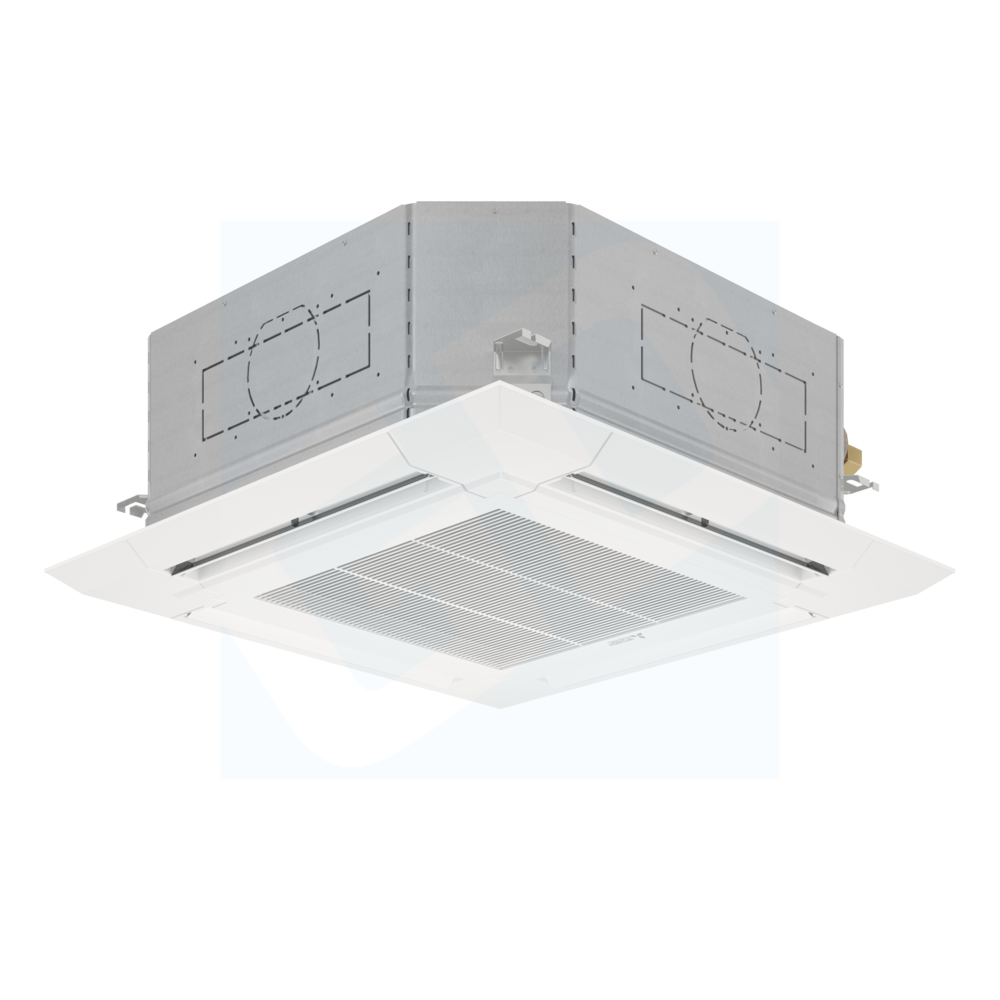

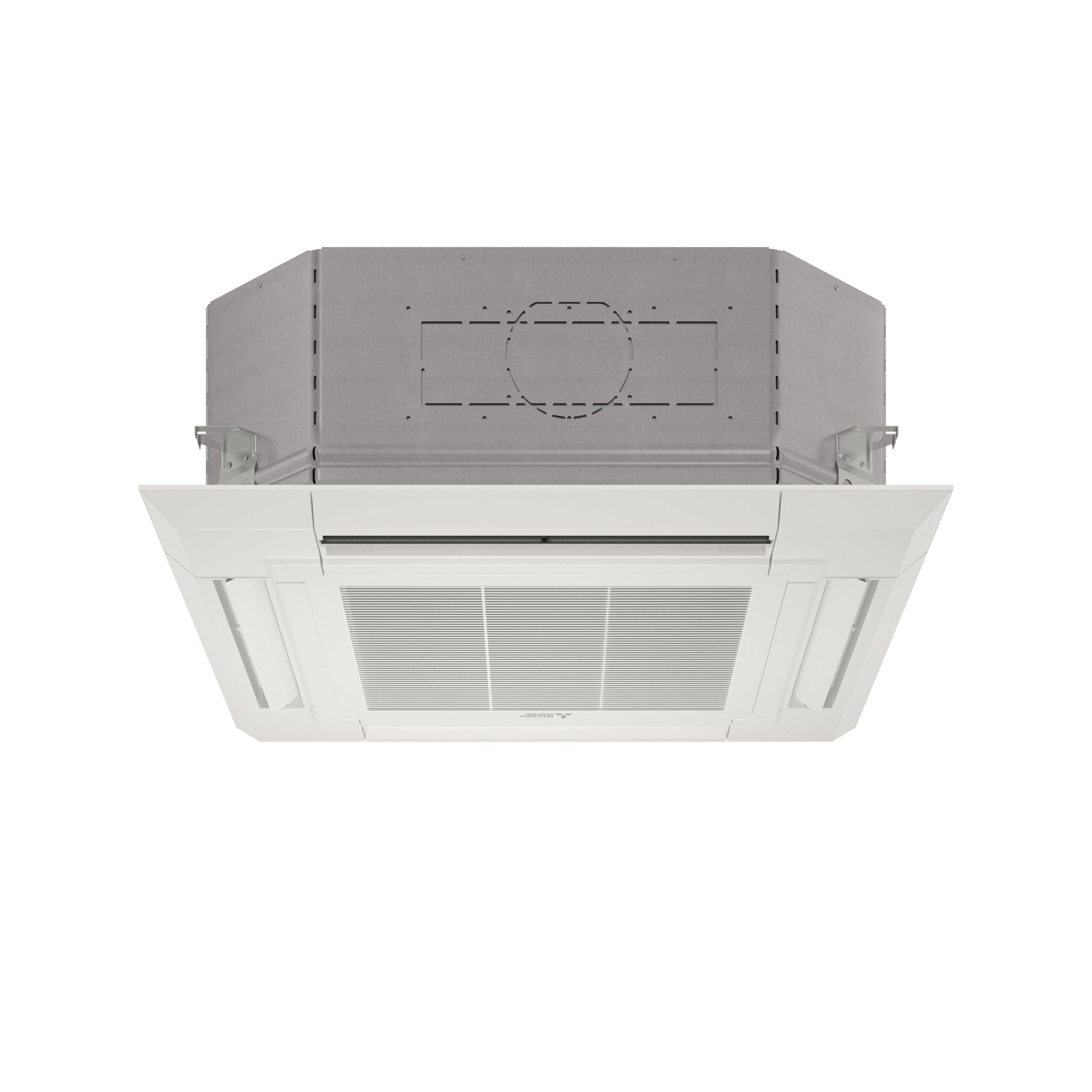

Mitsubishi PLA‑AE18NL – 18,000 BTU R‑454B Ceiling Cassette Indoor Unit
The Mitsubishi PLA‑AE18NL four‑way ceiling cassette delivers efficient 18,000 BTU heating and cooling in a single‑zone mini‑split setup. Designed for commercial and large residential spaces (up to ~750 sq ft), this P‑Series unit uses low‑GWP R‑454B refrigerant and offers silent, year‑round comfort—even in low ambient temps.
General Information
System Type: Ceiling cassette ductless air handler (indoor only)
Model: PLA‑AE18NL
Capacity: 18,000 BTU Cooling / 19,000 BTU Heating
Room Size: Ideal for up to ~750 sq ft
Operating Modes: Heating & Cooling
ENERGY STAR®: Yes
Refrigerant: R‑454B, pre‑charged; connects via standard line sets
Key Features
-
3D i‑see Sensor®: Scans room occupancy and temperature patterns to adjust airflow and save energy
-
72 Airflow Configurations: Selectable individual vane control for customized comfort in varied layouts
-
Quiet Operation: Sound levels just 28–32 dB(A) in both heating and cooling
-
Built‑in Condensate Lift: Simplifies installation with internal pump capable of 33" lift
-
Low‑Profile Design: Compact 33 × 33 × 10″ unit fits neatly into standard ceiling grids
-
Efficient Fan System: DC fan motor delivers up to 600 CFM airflow
-
Flexible Controls: Compatible with wired/wireless remotes, app-based and third‑party interfaces
Specifications (Rated Conditions)
-
Airflow (Cooling/Heating): 460–600 CFM
-
Sound Pressure: 28–32 dB(A)
-
Electrical: 208/230 V • 1‑Phase • 60 Hz
-
Piping Size: Liquid ¼″ • Gas ½″ • Drain 1¼″
-
Unit Dimensions/Weight: 33‑1/16″ × 33‑1/16″ × 10‑3/16″ • 46 lb
Included Components
Ideal For

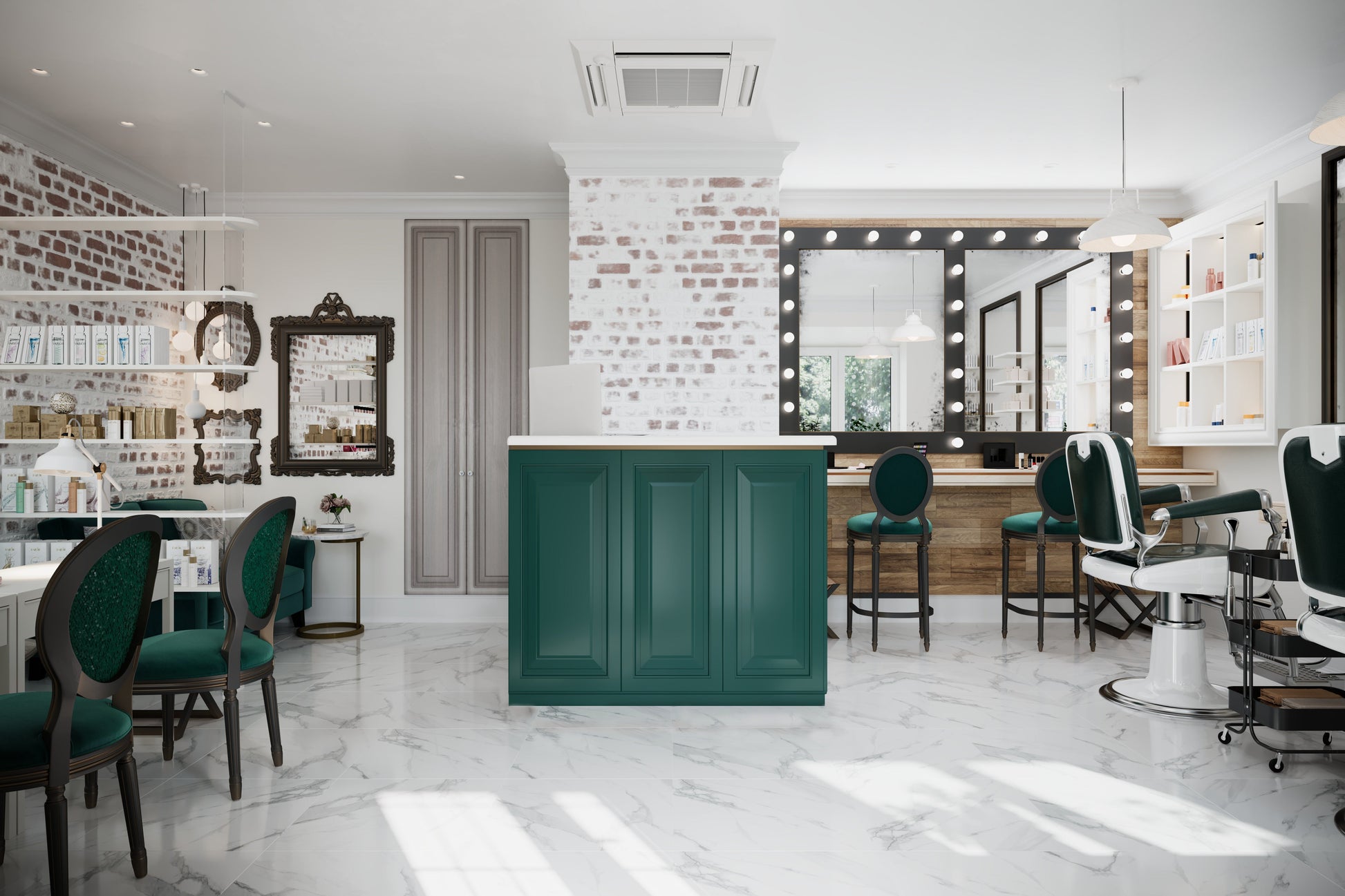

Facility managers, business owners, and homeowners seeking high-efficiency, discreet ceiling-mounted comfort. Perfect for classrooms, offices, conference rooms, lobbies, and other light-commercial or large residential environments.
